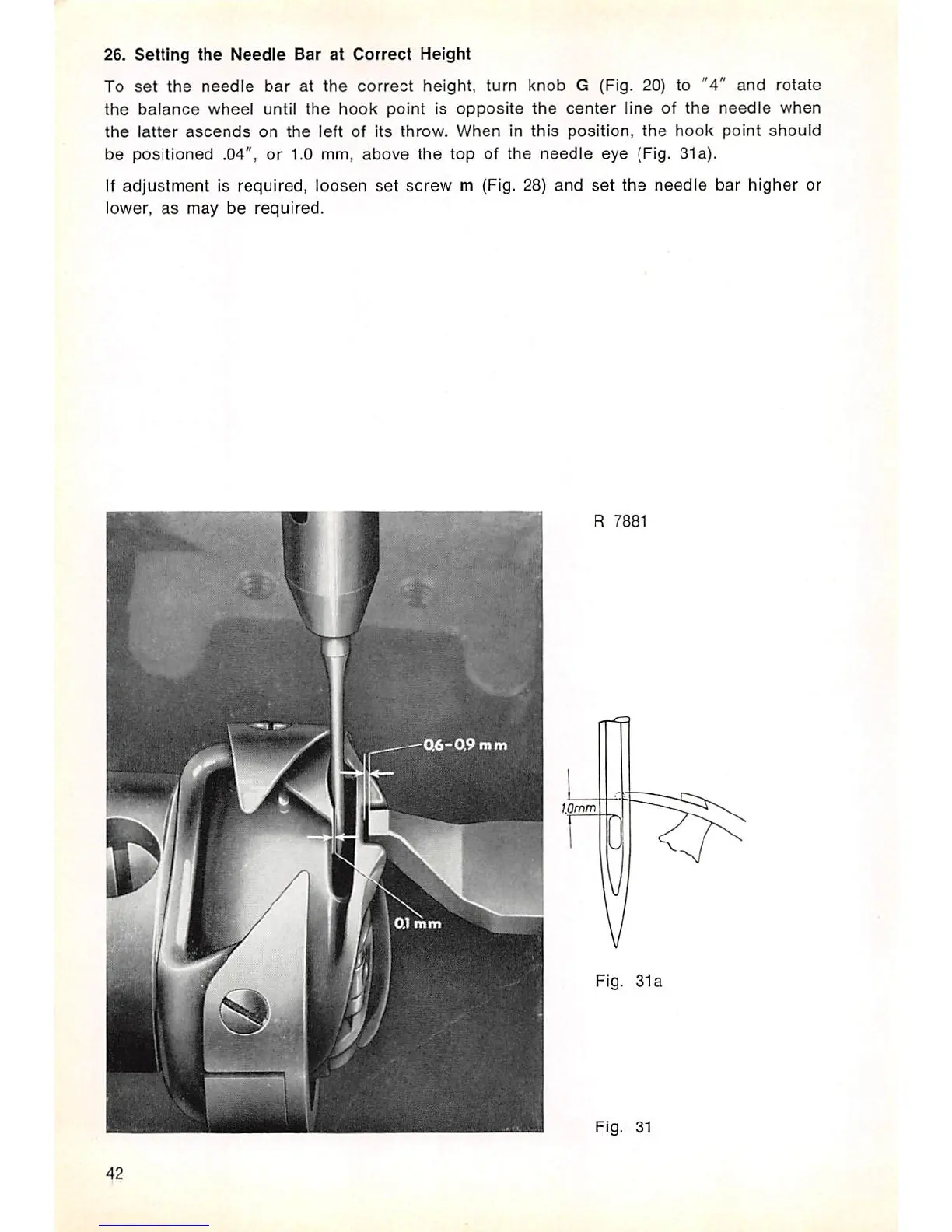

26.
Setting
the
Needle
Bar
at
Correct
Height
To
set
the
needle
bar at the correct height, turn knob G (Fig. 20) to "4" and rotate
the
balance
wheel until
the
hook
point is
opposite
the
center
line of
the
needle
when
the
latter
ascends
on
the
left of its throw.
When
in
this
position,
the
hook
point
should
be positioned .04", or 1.0 mm,
above
the
top of
the
needle
eye {Fig. 31a).
If
adjustment
is
required,
loosen
set
screw
m (Fig. 28)
and
set
the
needle
bar
higher
or
lower,
as
may
be
required.
R
7881
Wmm
Fig.
31a
Fig.
31
42
