Pfaff 238-0 User Manual

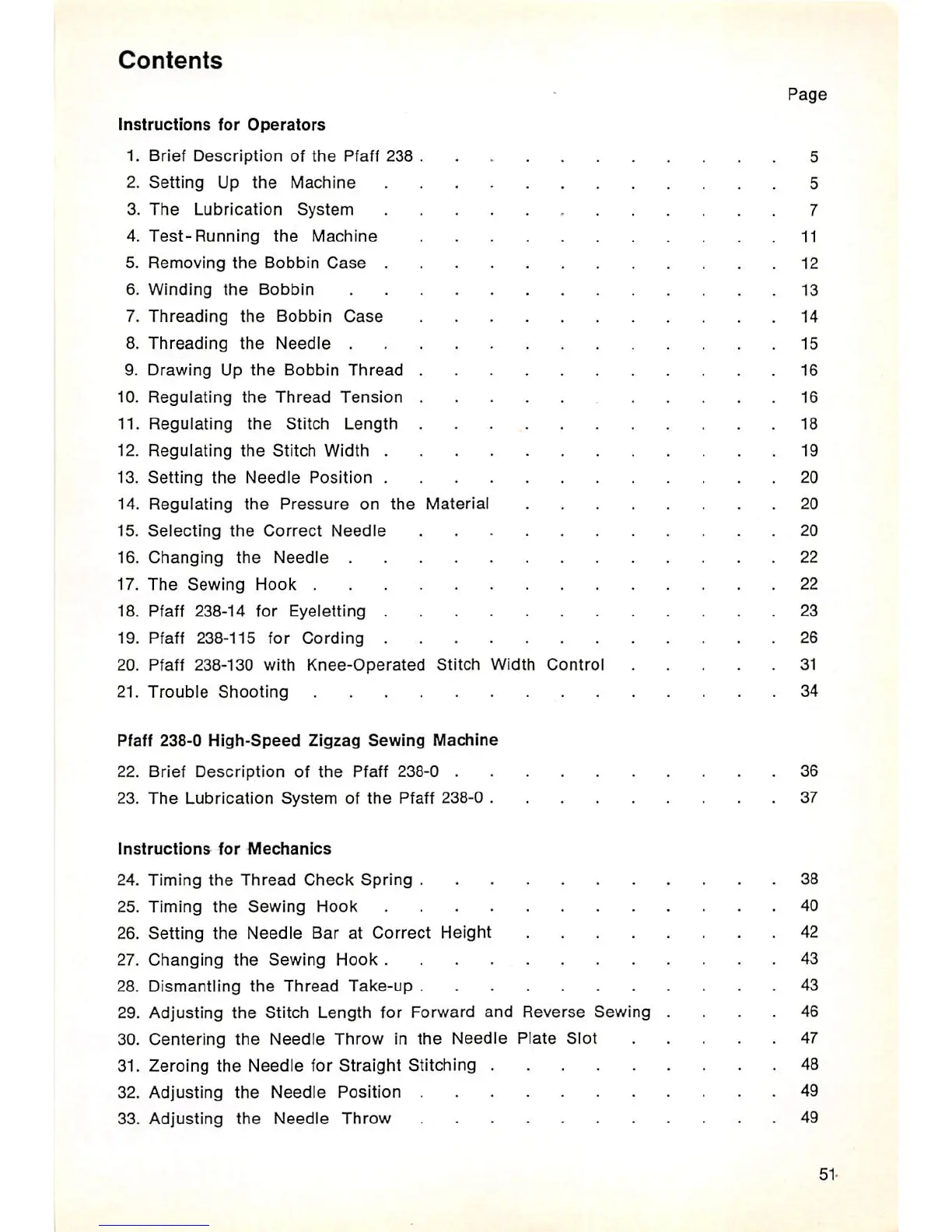

Contents
Page
Instructions for Operators
1. Brief Description of the Pfaff 238 5
2.
Setting Up the Machine 5
3.
The Lubrication System 7
4. Test-Running the Machine 11
5.
Removing the Bobbin Case 12
6. Winding the Bobbin 13
7. Threading the Bobbin Case 14
8. Threading the Needle 15
9.
Drawing Up the Bobbin Thread 16
10.
Regulating the Thread Tension 16
11.
Regulating the Stitch Length 18
12.
Regulating the Stitch Width 19
13.
Setting the Needle Position 20
14. Regulating the Pressure on the Material 20
15. Selecting the Correct Needle 20
16. Changing the Needle 22
17. The Sewing Hook 22
18. Pfaff 238-14 for Eyeletting 23
19. Pfaff 238-115
for Cording 26
20. Pfaff 238-130 with Knee-Operated Stitch Width Control 31
21. Trouble Shooting 34
Pfaff 238-0
High-Speed Zigzag Sewing Machine
22. Brief Description of the Pfaff 238-0 36
23. The Lubrication System of the Pfaff 238-0 37
Instructions for Mechanics
24. Timing the Thread Check Spring 38
25.
Timing the Sewing Hook 40
26. Setting the Needle Bar at Correct Height 42
27. Changing the Sewing Hook 43
28.
Dismantling the Thread Take-up 43
29. Adjusting the Stitch Length for Forward and Reverse Sewing .... 46
30.
Centering the Needle Throw in the Needle Plate Slot 47
31. Zeroing
the Needle for Straight Stitching 48
32. Adjusting
the Needle Position 49
33. Adjusting
the Needle Throw 49
51-
