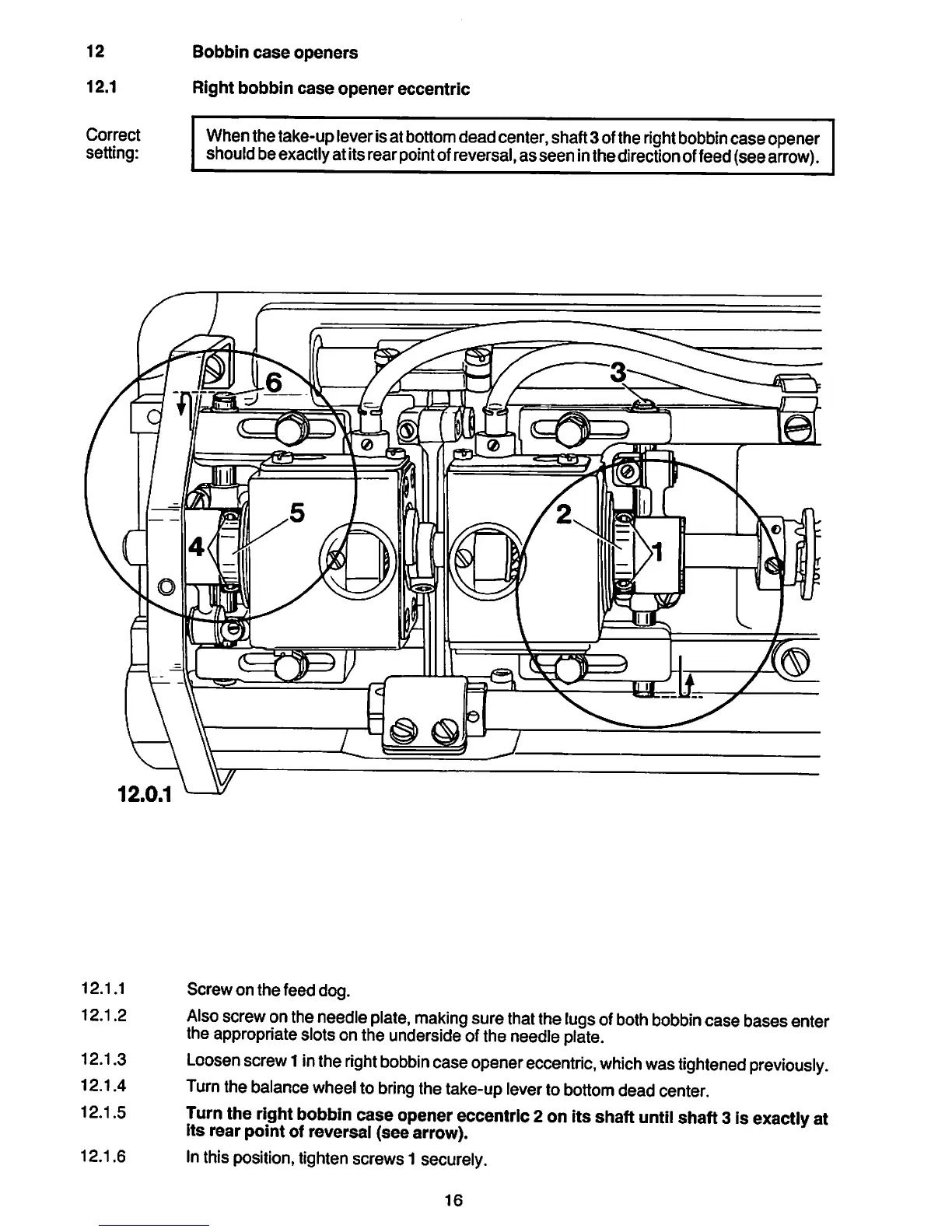

Pfaff 441-O - Bobbin Case Openers

12
12.1
Correct
setting:
12.0.1
12.1.1
12.1.2
12.1.3
12.1.4
12.1.5
12.1.6
Bobbin case openers
Right bobbin case opener eccentric
When thetake-upleverisat bottom deadcenter,shaft3ofthe right bobbin caseopener
should be exactly atitsrear point ofreversal, asseen inthe direction offeed(see arrow).
a
Screw on the feed dog.
Also screwontheneedle plate, making surethatthelugsof both bobbin case bases enter
the
appropriate slotsonthe underside ofthe needle plate.
Loosen screw 1 in the right bobbin case opener eccentric, which was tightened previously.
Turnthe balancewheelto bring the take-up leverto bottom dead center.
Turn the right bobbin case openereccentric 2onitsshaft until shaft3is exactly at
its rear pointof reversal (see arrow).
Inthis position, tighten screws1 securely.
16
