Pfaff 441-O - Scale Ring in Reverse-Feed Control

Correct
setting:

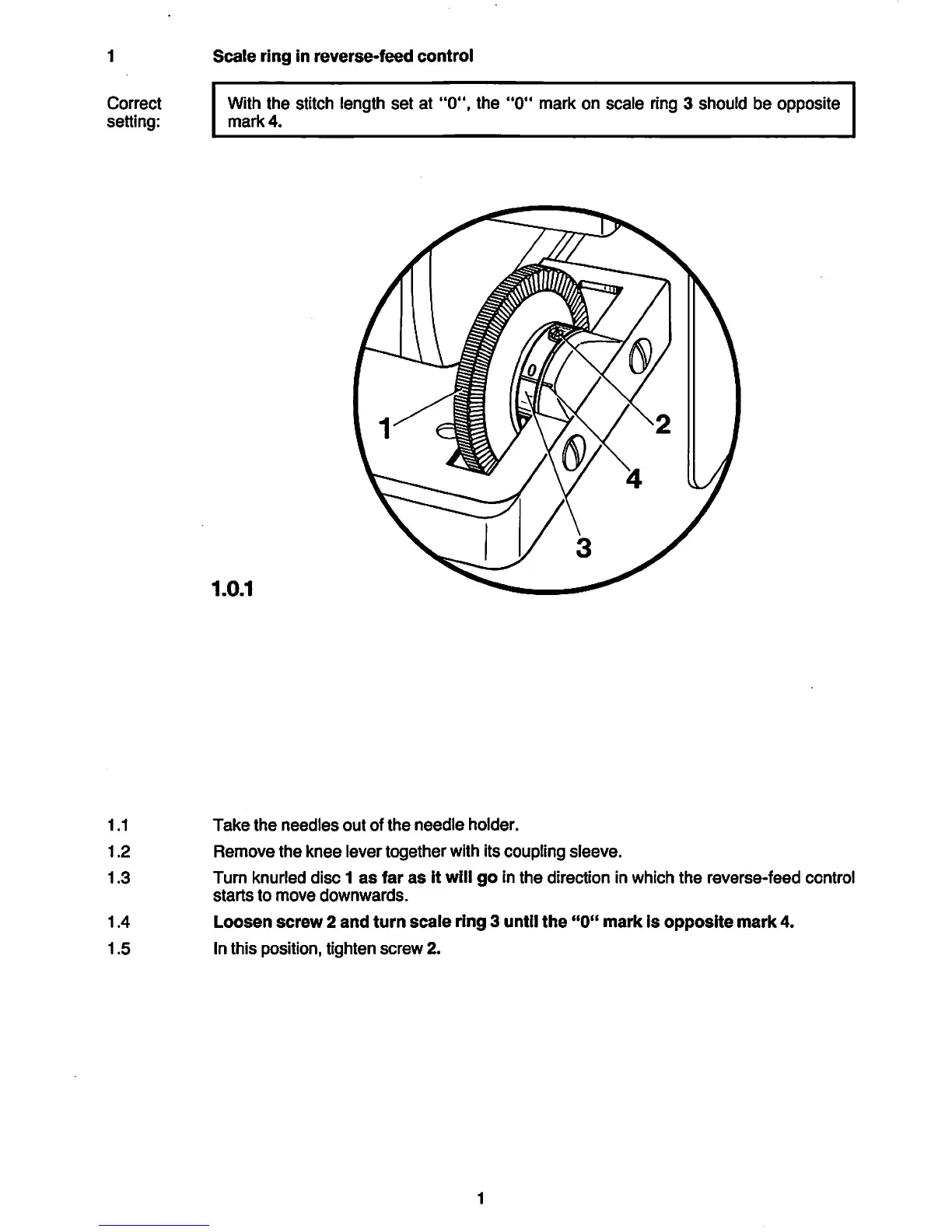

Scale ring in reverse-feed control
With the stitch length set at "0", the "0" mark on scale ring 3 should be opposite
mark 4.
1.0.1
1.1 Take the needles out of the needle holder.
1.2 Remove the knee levertogether with its coupling sleeve.
1.3 Tum knurled disc 1 as far as it will go in the direction in which the reverse-feed control
starts to move downwards.
1.4 Loosen screw 2 and turn scale ring 3 until the "0" mark Is opposite mark 4.
1.5 In this position, tighten screw 2.
