Pfaff 441-O - Knee Lever Play

15
Correct
setting:
Knee lever play
When operated, the knee lever should have a small amount of play before the presser
foot starts rising.

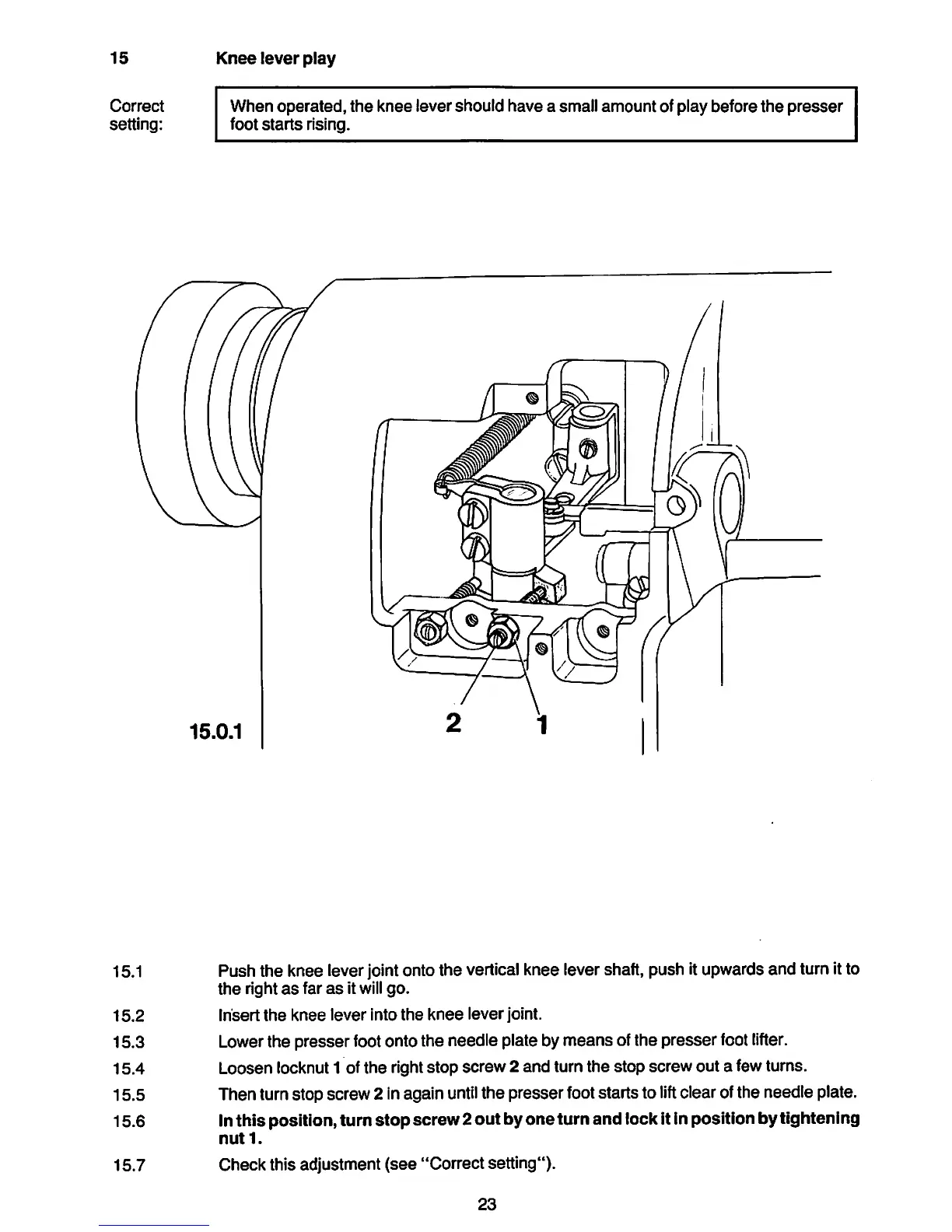

15.0.1
15.1 Push the knee lever jointonto the vertical knee lever shaft, push itupwards and turn itto
the right as far as itwillgo.
15.2 Insert the knee lever Into the knee lever joint.
15.3 Lowerthe presserfootonto the needle plate bymeans ofthe presserfoot lifter.
15.4 Loosen locknut 1 of the rightstop screw 2 and turn the stop screwout a few turns.
15.5 Then turnstop screw 2 inagain until the presserfootstarts to lift clear ofthe needle plate.
15.6 Inthis position, turn stop screw2out byone turn and lockitInposition bytightening
nutl.
15.7 Check this adjustment (see "Correct setting").
23
