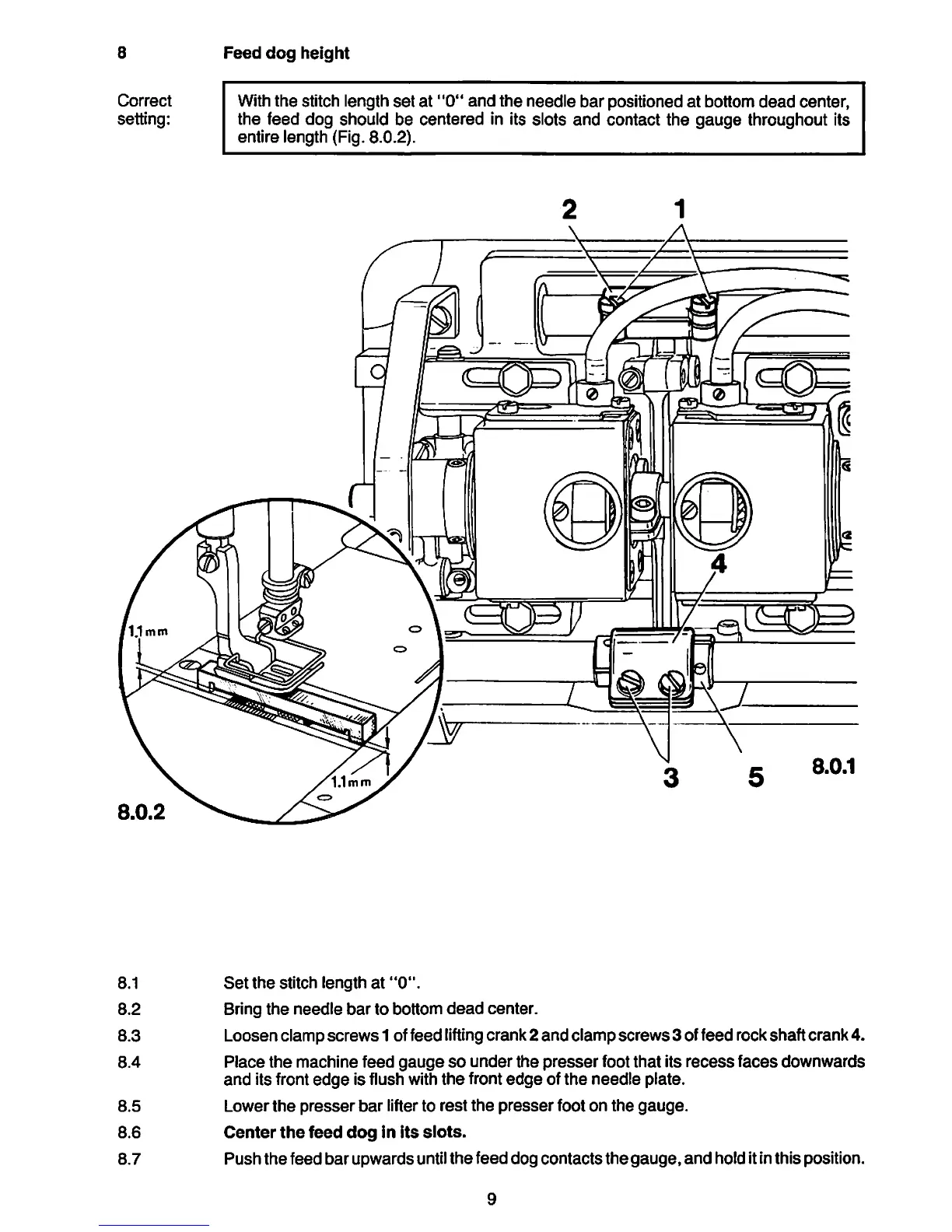

Pfaff 441-O - Feed Dog Height

Correct
setting:
Feed dog height
With the stitch length set at "0" and the needle bar positioned at bottom dead center,
the feed dog should be centered in its slots and contact the gauge throughout its
entire length (Fig. 8.0.2).
2
8.1 Set the stitch length at "0".
8.2 Bring the needle bar to bottom dead center.
8.3 Loosenclamp screws 1 offeed liftingcrank2 and clamp screws 3 offeed rock shaftcrank4.
8.4
Place the machine feed gauge so under the presser foot that its recess faces downwards
and its front edge is flush with the front edge of the needle plate.
8.5 Lower the presser bar lifterto rest the presser foot on the gauge.
8.6 Center the feed dog in its slots.
8.7 Push the feed bar upwardsuntil the feed dog contacts the gauge, and hold itinthis position.
