Correct
setting:
5.1
5.2
5.3
5.4

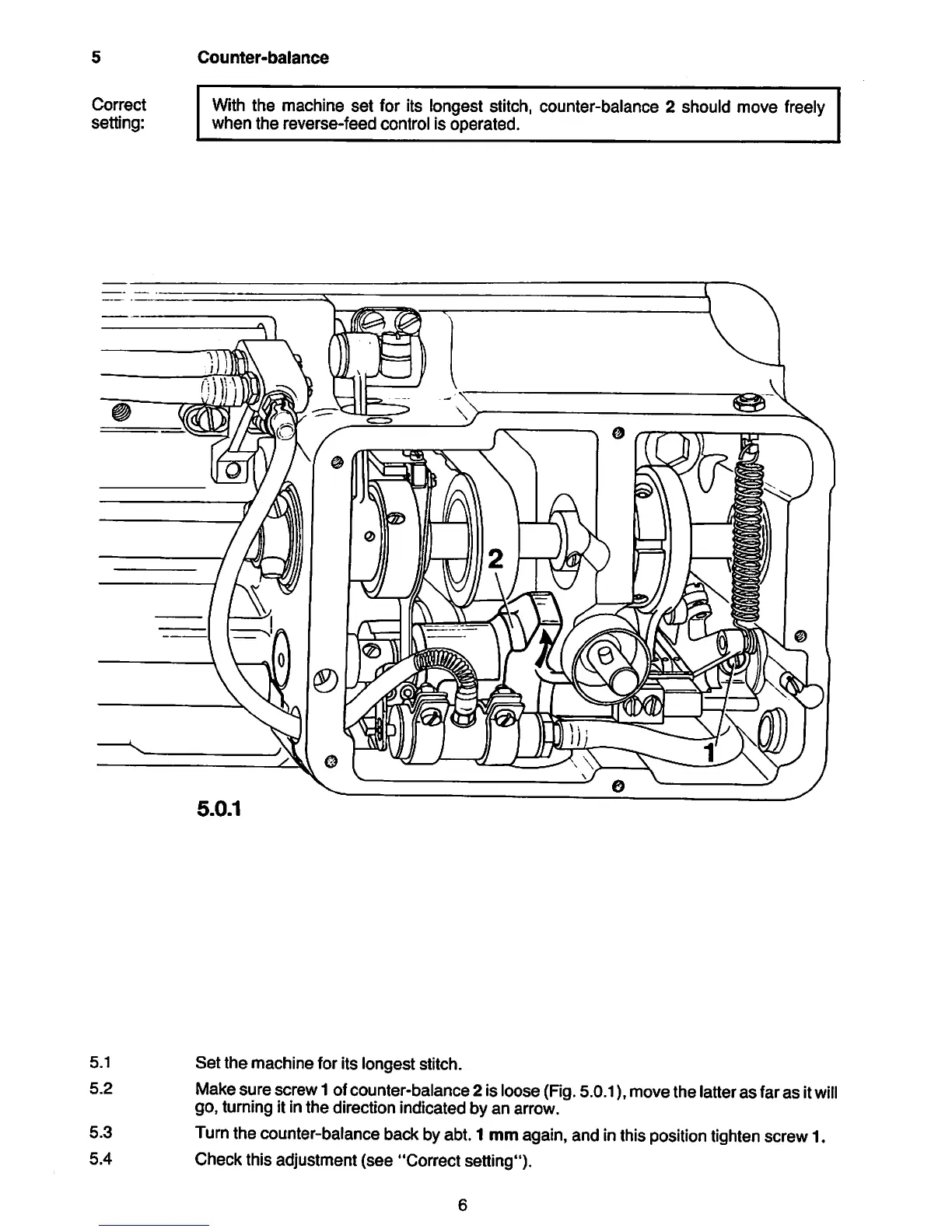

Counter-balance
With
the machine set for its longest stitch, counter-balance 2 should move freely
when
the reverse-feed control is operated.
5.0.1
Set
the
machine for its longest stitch.
Makesure screw 1 ofcounter-balance 2 is loose (Fig.5.0.1), move the latteras faras it
will
go, turning it inthe direction indicated by an arrow.
Turnthe counter-balancebackbyabt. 1 mmagain,and inthis
position
tighten
screw1.
Check this adjustment
(see
"Correct setting").
