Pfaff 441-O - Page 5

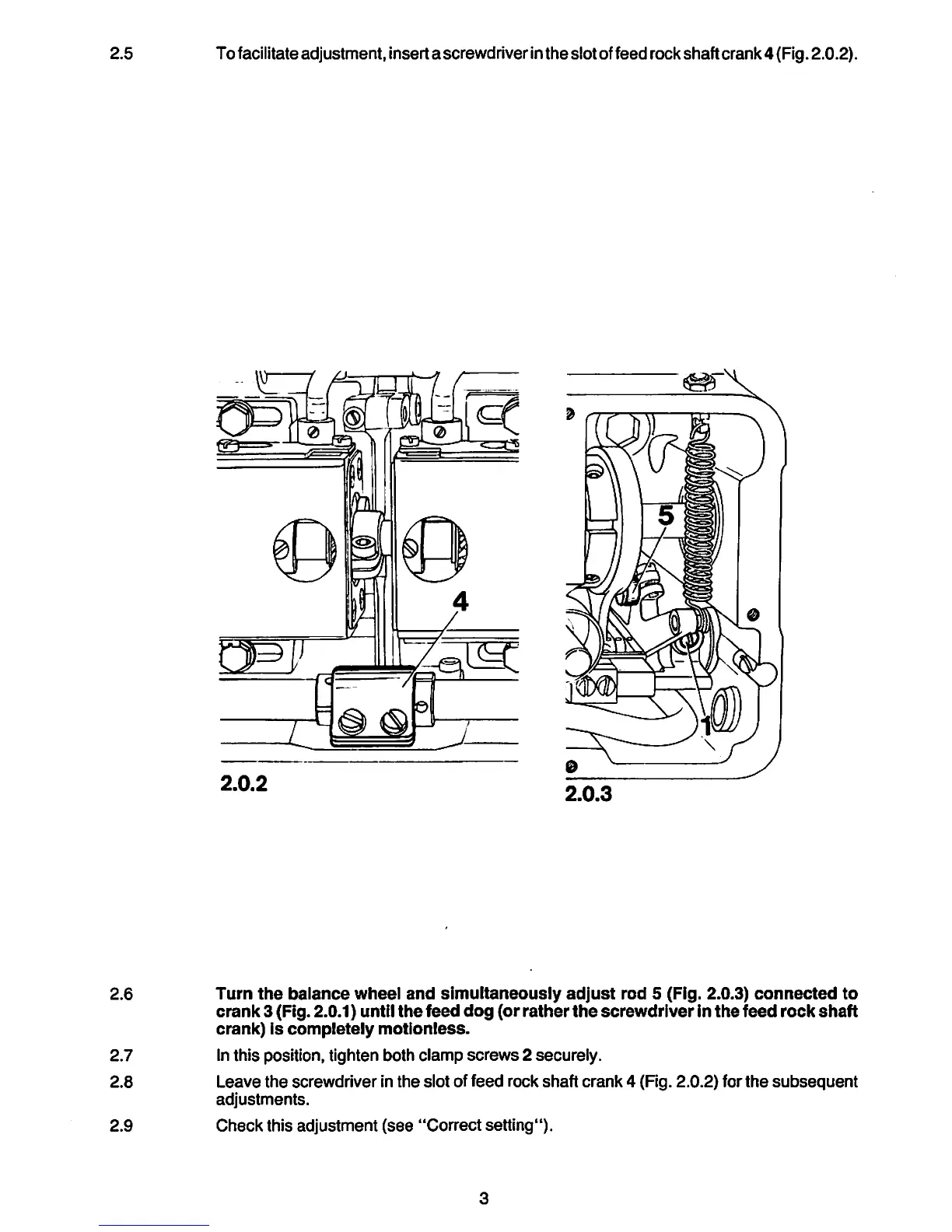

2.5 Tofacilitateadjustment, inserta screwdriverinthe slot offeed rock shaftcrank4 (Fig. 2.0.2).
2.0.2
2.0.3
2.6 Turn the balance wheel and simultaneously adjust rod 5 (Fig. 2.0.3) connected to
crank 3 (Fig. 2.0.1) until the feed dog (or rather the screwdriver in the feed rock shaft
crank) Is completely motionless.
2.7 In this position, tighten both clamp screws 2 securely.
2.8 Leave the screwdriver in the slot of feed rock shaft crank 4 (Fig. 2.0.2) for the subsequent
adjustments.
2.9 Check this adjustment (see "Correct setting").
