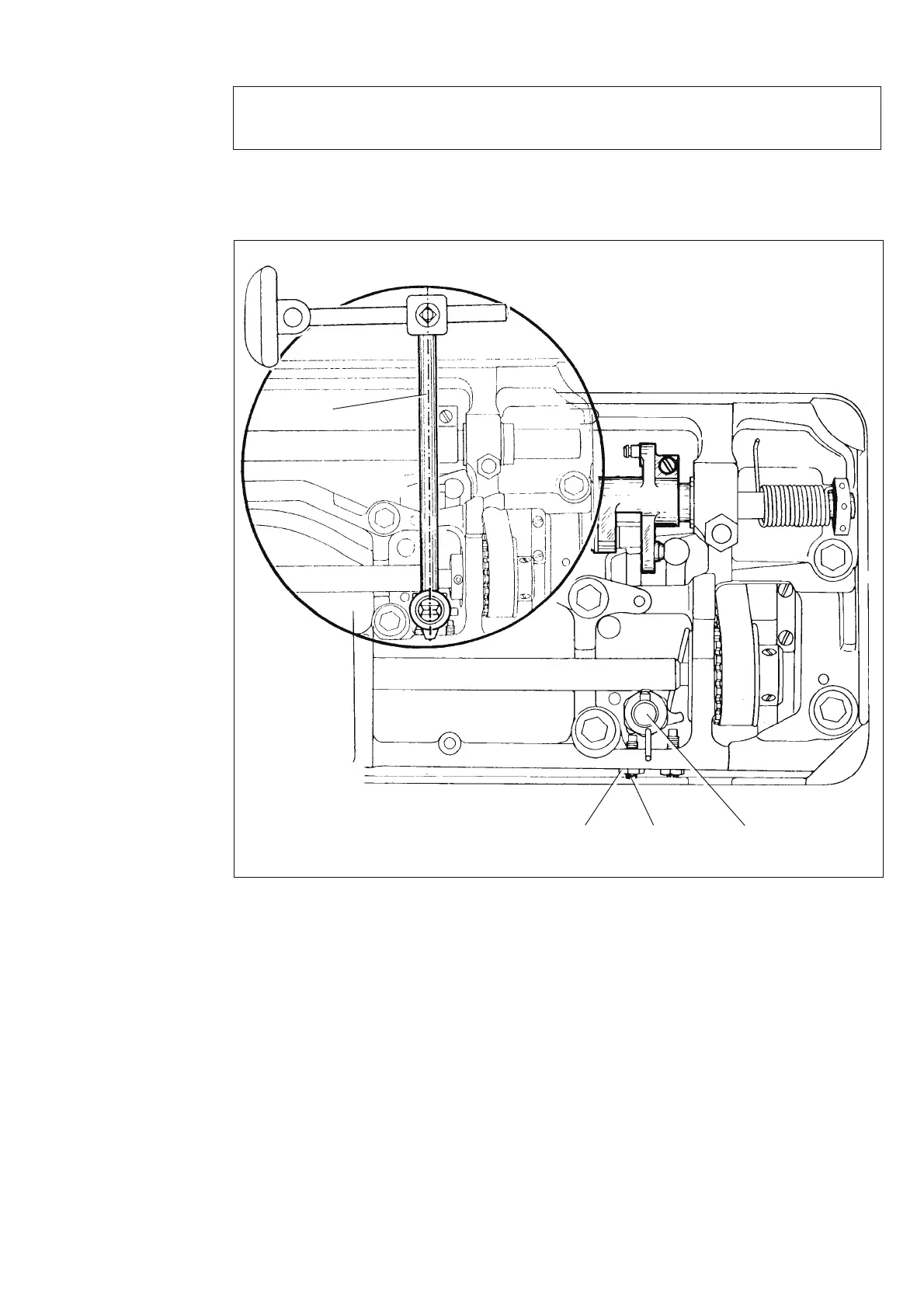

Knee lever resting position
Requirement
When at rest, knee lever connecting rod
2
must be at right angles with the bedplate.
●
Raise the presser foot by means of the presser bar lifter.
●
Push the knee lever joint on knee lever shaft
1
and let the connecting rod
2
engage in the
joint.
●
Turn stop screw
3
(nut
4
) according to the requirement.
2
1
3
4
22
24
Table of Contents
Notes on Safety
2
Checking and Adjustment Aid
3
Preliminary Adjustment of the Needle Height
4
Zeroing the Feed Motion
5
Zeroing the Needle Feed Motion (Not Applicable to PFAFF 483)
7
Feed Lifting Motion
8
Feed Dog Height
9
Feed Driving Motion
10
Timing the Needle Feed Motion (Not Applicable to PFAFF 483)
11
Centering the Needle in the Needle Hole
12
Eccentric Hook Shaft Bearing and Hook-To-Needle Clearance
14
Needle Rise, Final Adjustment of Needle Height and Bobbin Case Positioning Finger
15
Vertical Position of Bobbin Case Opener
16
Position of Bobbin Case Opener
17
Timing the Bobbin Case Opener
18
Clearance between Presser Foot and Needle Plate
19
Eliminating Feed Differences (Not Applicable to PFAFF 483)
20
Tension Release Mechanism
21
Thread Check Spring and Thread Regulator
22
Knee Lever Resting Position
23
Knee Lever Play
24
Adjusting the Knee Lever Motion
25
Bobbin Winder
26
Limiting the Stitch Length
27
Matching Forwards and Reverse Stitch Lengths
28
Presser Foot Pressure
29
