28
23

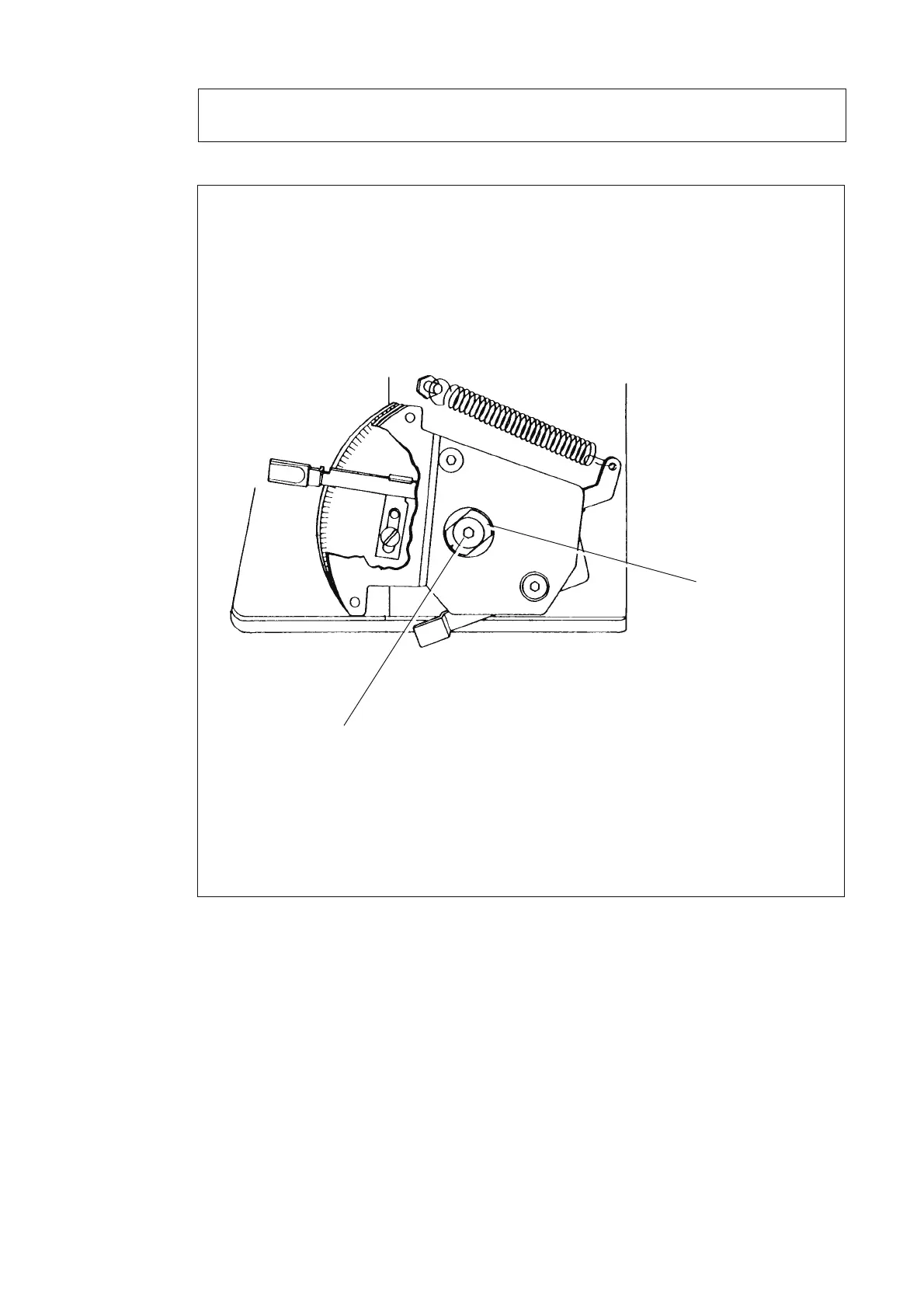

Matching forwards and reverse stitch lengths
Requirement
When the stitch length is set at “3” the forwards feed must match the reverse feed.
●
Turn bush
1
(screw
2
) in accordance with the requirement. Make sure that the eccentricity
of bush
1
points downwards.
1
2
27
29
