7

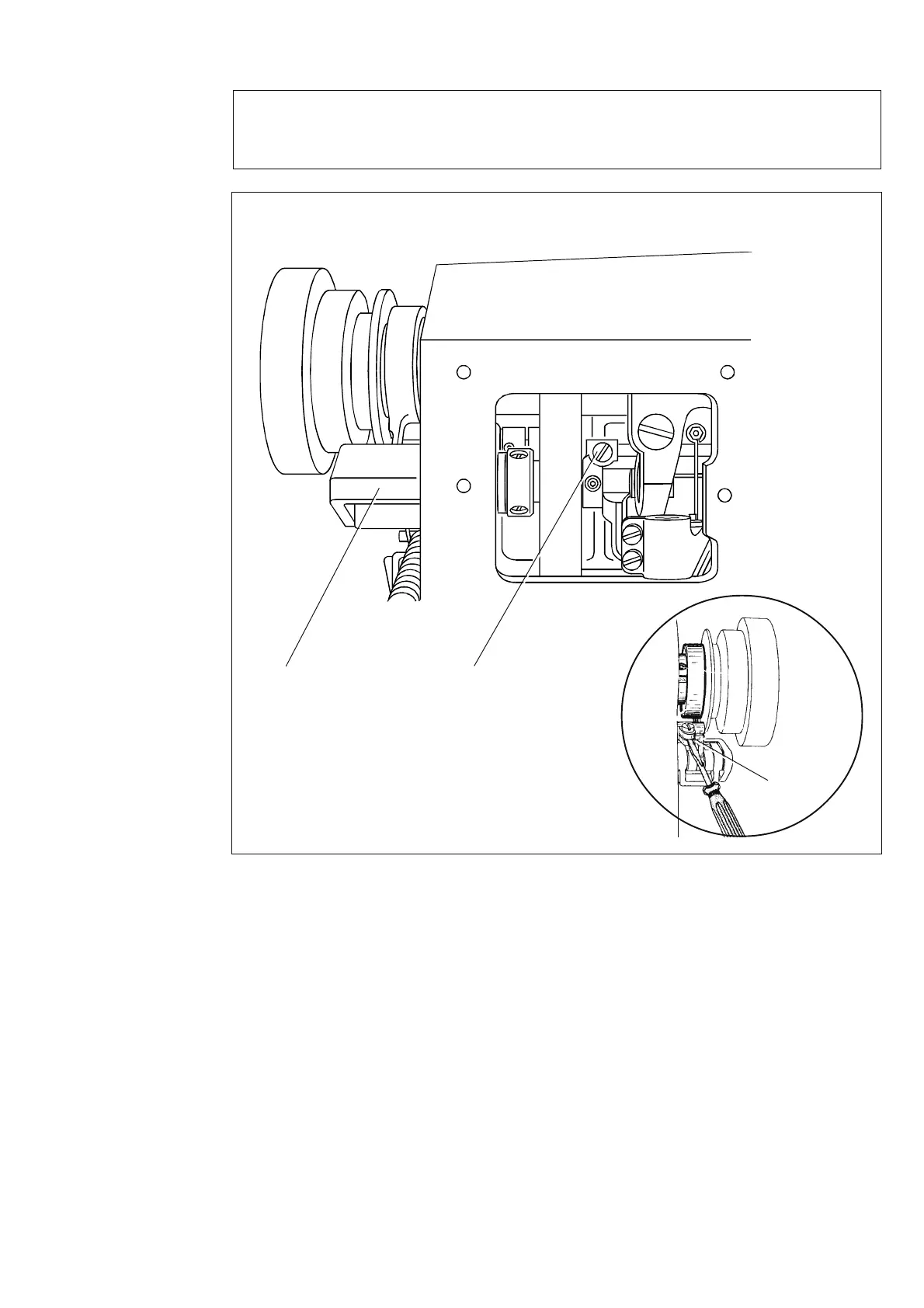

3 Zeroing the needle feed motion (Adjustment not applicable to Pfaff 483)
Requirement:
With the stitch length control set at “0” the needle bar should make no feed motion when
the handwheel is turned.
● Adjust needle feed regulating crank 1 (screw 2) according to the requirement.
Adjustment aid:
Insert a screwdriver in needle feed driving crank 3 - it must remain still when the
handwheel is turned.
3
1
2
