Adjustment
11 - 58
11
.08.02
Coupling for roller presser drive
Requirement
There must be a distance of
3 mm
between coupling half
1
and locking disc
3
of the drive
mechanism.

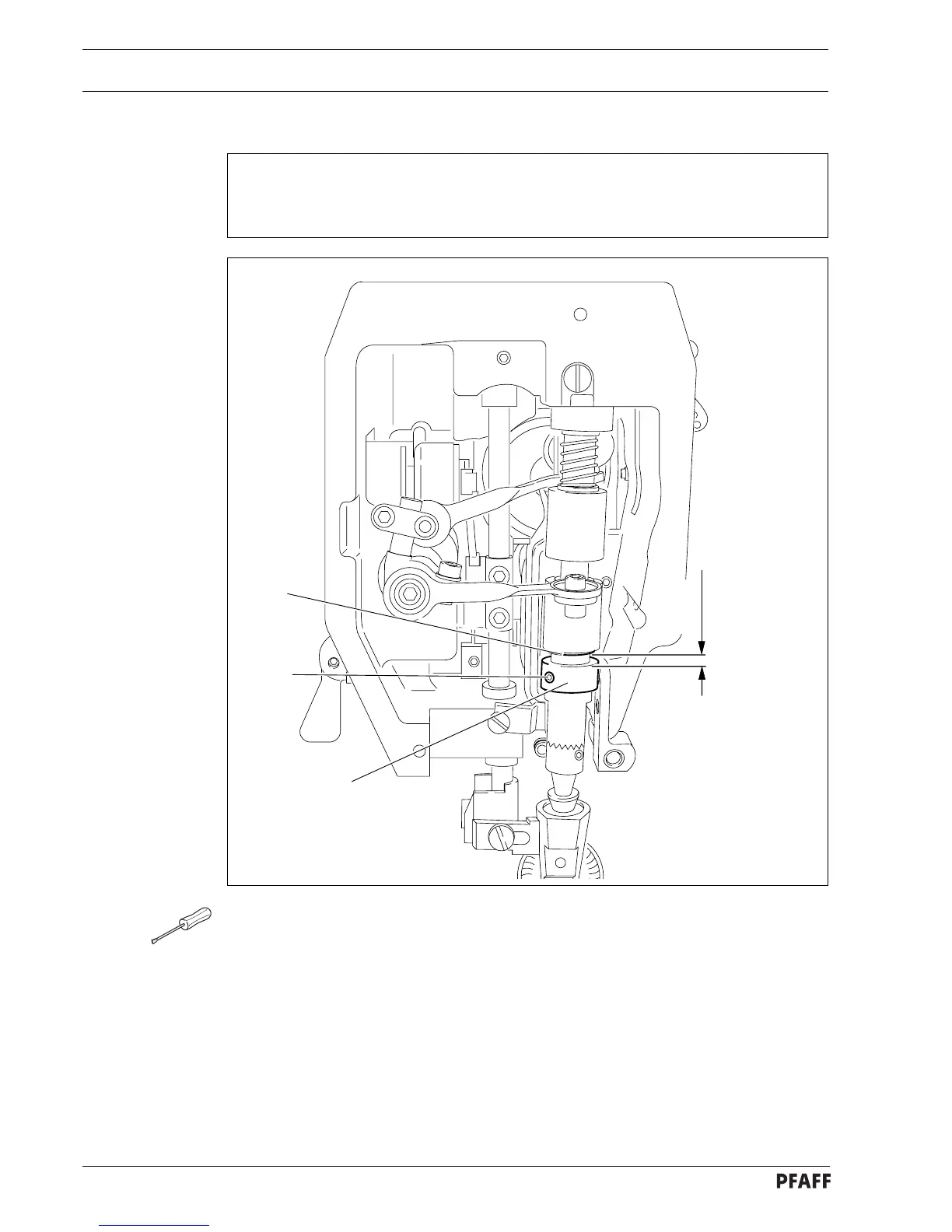

Fig. 11 - 54
●
Adjust coupling half
1
(screw
2
) according to the
requirement
.
1
2
3 mm
3
103
105
