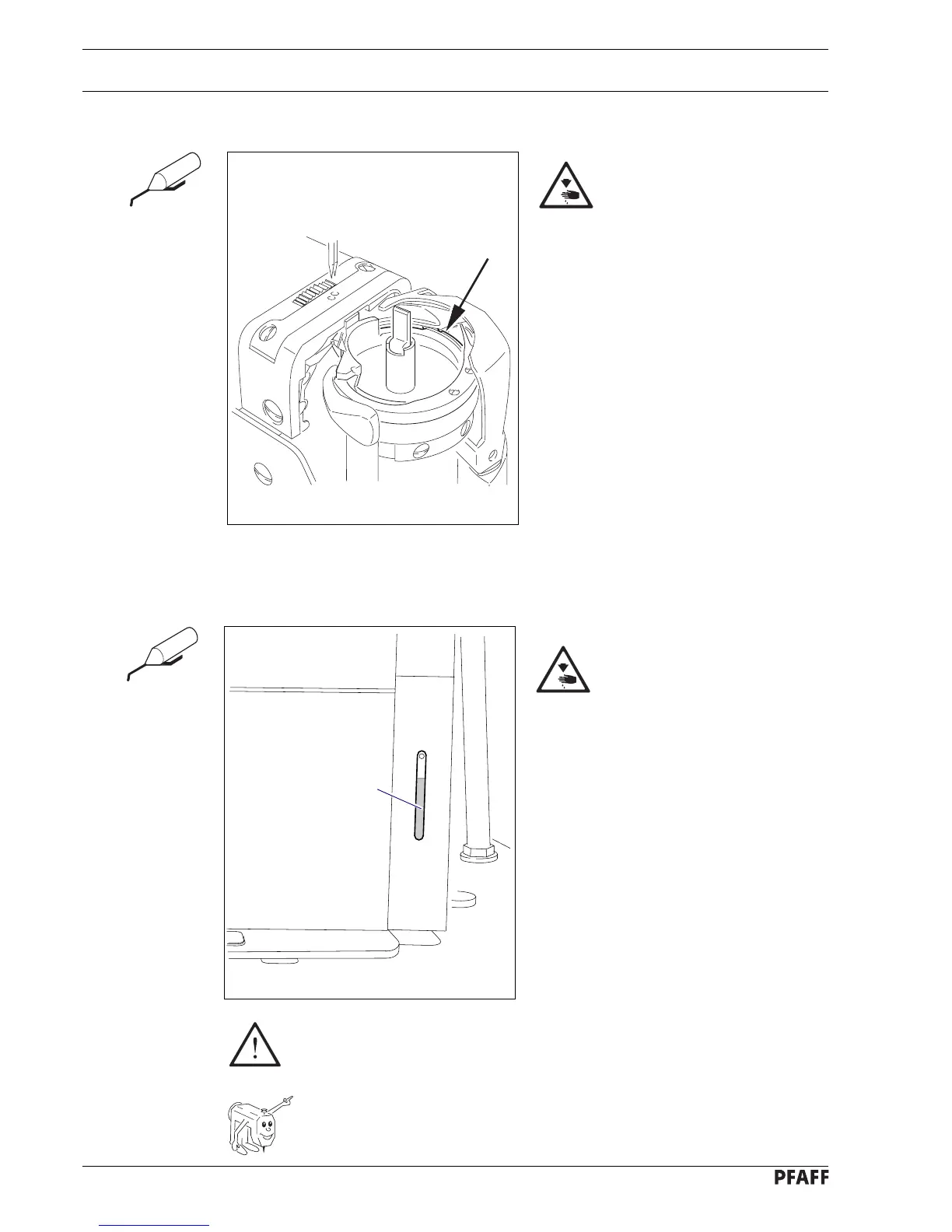

10.02 Oiling the hook
Switch the machine off!
Danger of injury if the machine
is started accidentally!
● Pour 1-2 drops of oil into hole 1 of the
hook gib daily.
● Before commissioning the machine, and
after long periods out of operation, pour a
few drops of oil into the hook race (see
arrow).
Fig. 10 - 02
10.03 Oil bowl for hook lubrication
Check the oil level before each
use.
There must always be oil in
reservoir 1.
● If required refill oil through hole.
Fig. 10 - 03
1
Use only oil with a mean viscosity of 22.0 mm
2
/s at 40°C and a density of
0.865 g/cm
3
at 15°C.
We recommend PFAFF sewing machine oil Best.-Nr. 280-1-120 144.
