Adjustment
11 - 21
11
.04.17

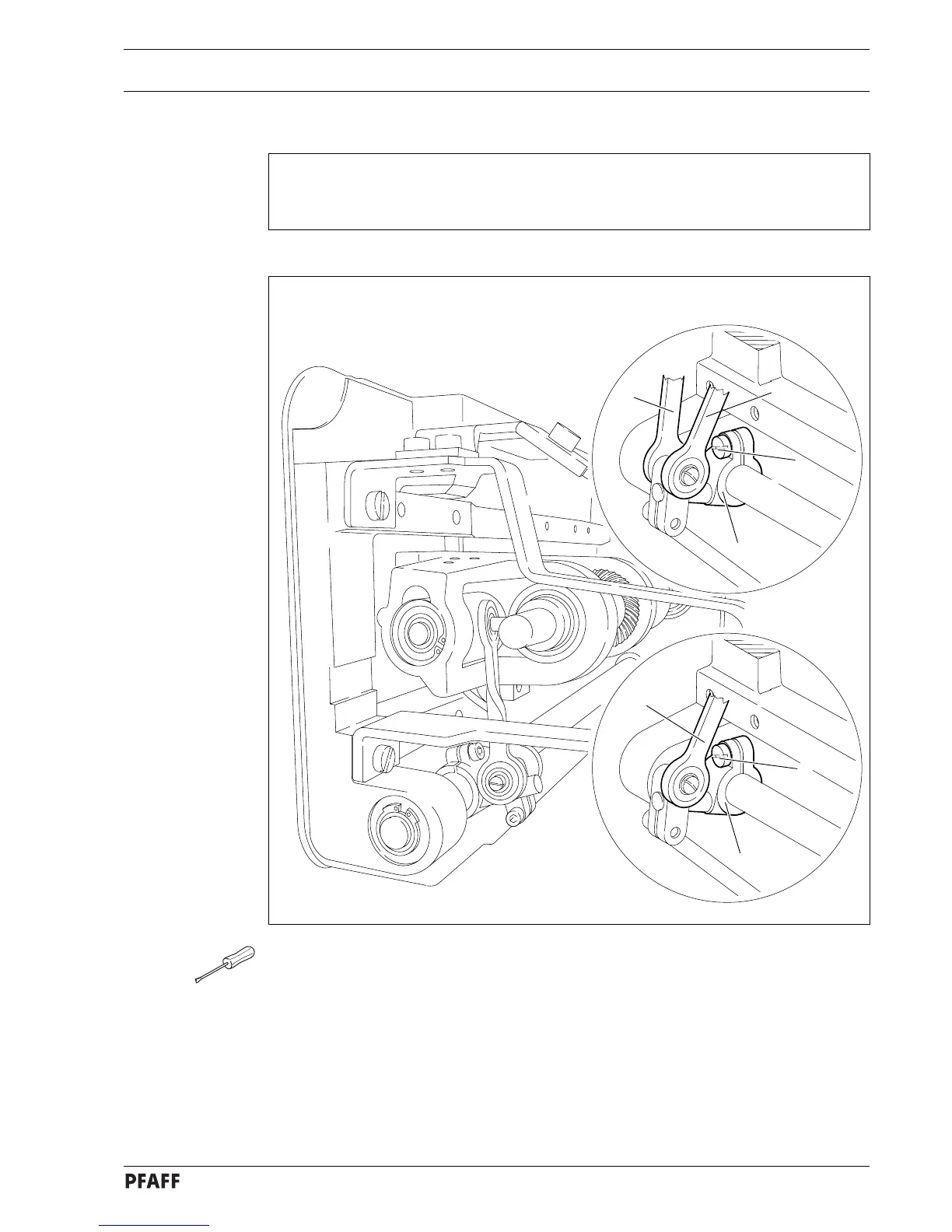

Shaft crank to feed wheel drive
Requirement
When the maximum stitch length is set, the linkage rod
3
, or linkage rods
3
and
4
on the
models 571 and 591, must be able to move freely when the balance wheel is turned.
●
Set the maximum stitch length.
●
Twist or shift the shaft crank
1
(screw
2
) according to the
requirement.
Fig. 11 - 17
PFAFF 571
PFAFF 591
PFAFF 574
2
1
2
1
3
3
4
66
68
