Adjustment
11 - 59
61-096
2
2
1
11
.08.03
Bevel gears for feed wheel drive (on the PFAFF 571 and 574)
Requirements
1.
Bevel gear
3
must fit well on the left side.
2.
There must be a distance of
14 mm
between bevel gear
3
and bevel gear
5
.

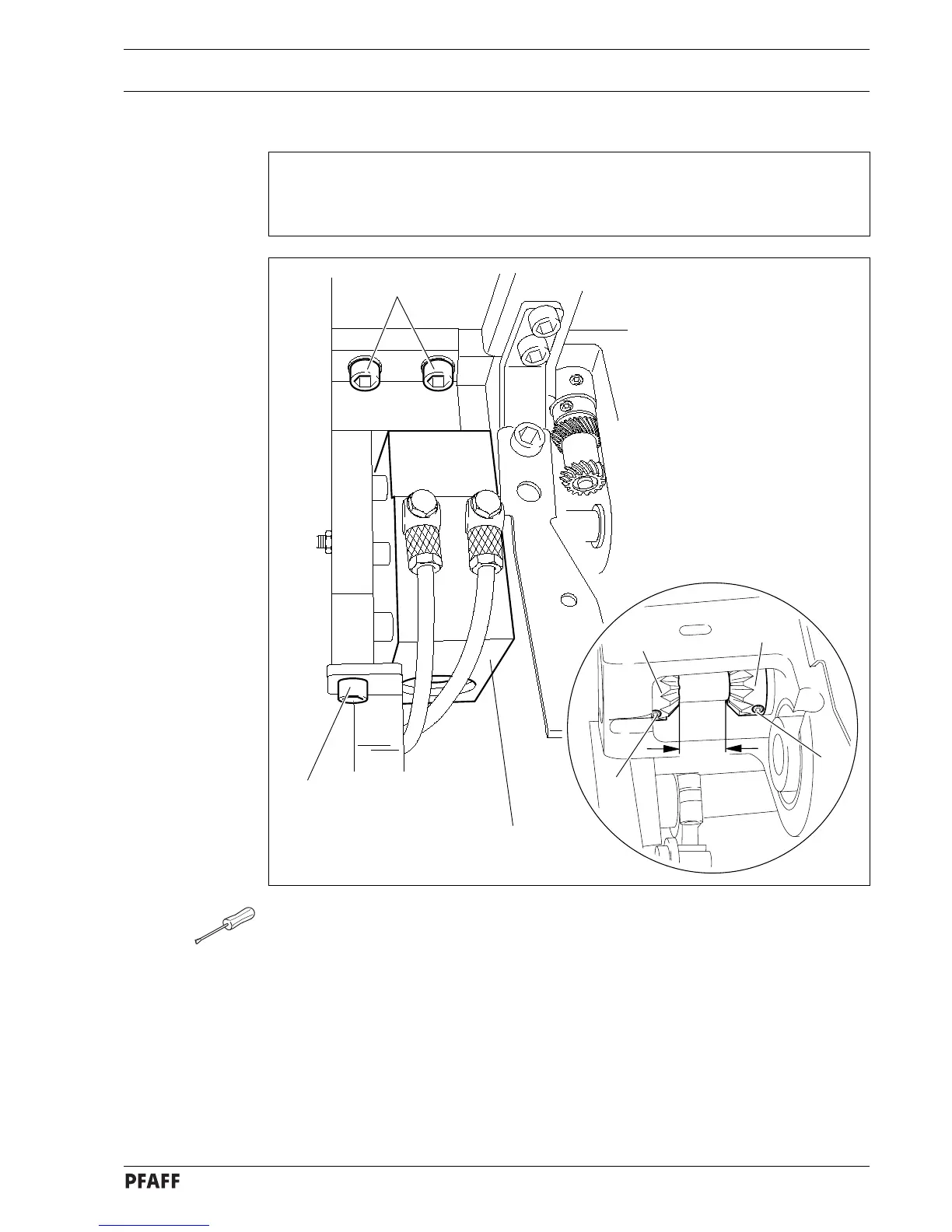

Fig. 11 - 55
●
Remove control unit
1
(screws
2
).
●
Adjust bevel gear
3
(screws
4
) according to
requirement 1
.
●
Adjust bevel gear
5
(screws
6
) according to
requirement 2
.
3
6
5
4
14 mm
104
106
