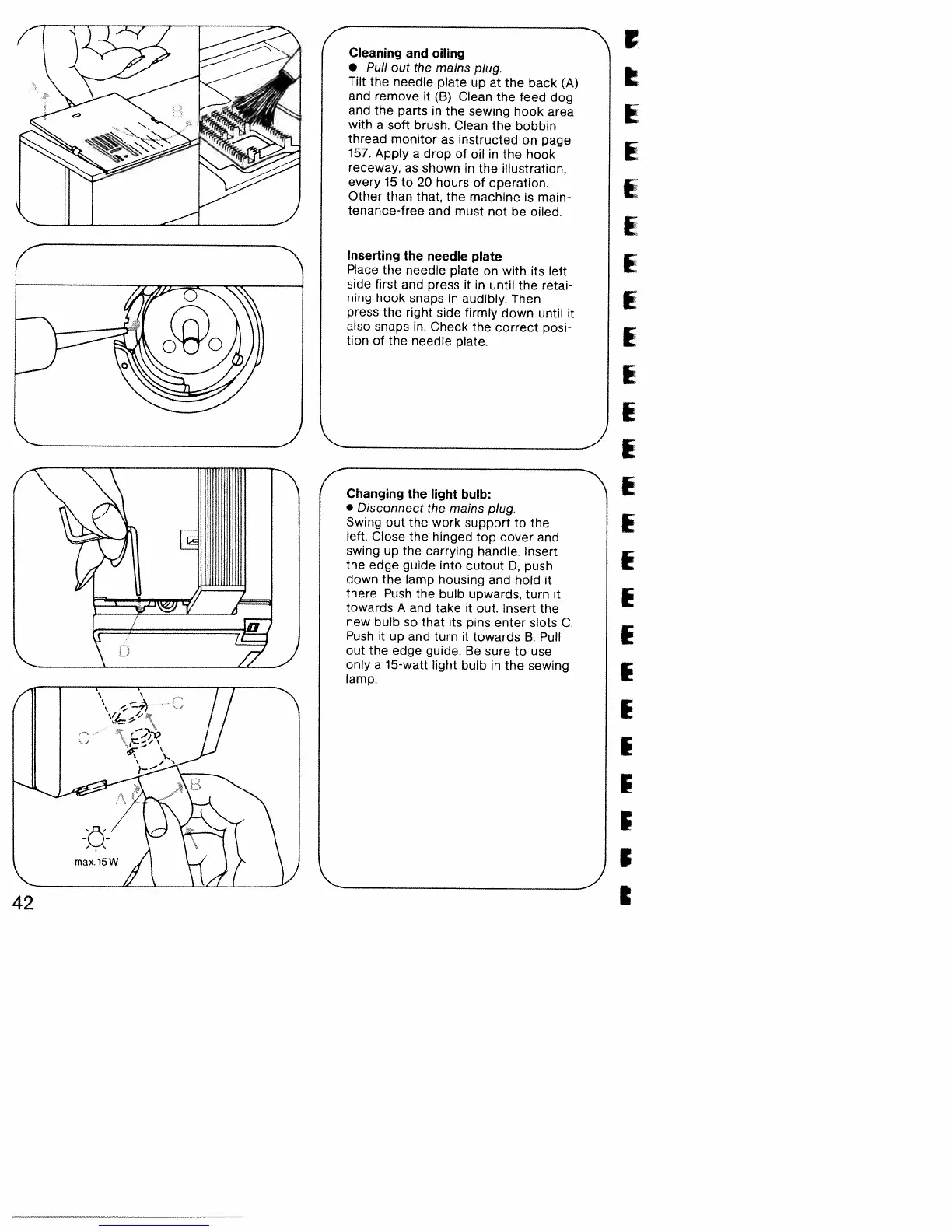

Cleaning
and
oiling
• Pull
out
the
mains
plug.
Tilt
the
needle
plate
up
at the
back
(A)
and
remove
it
(B).
Clean
the feed
dog
and
the
parts
in
the
sewing
hook
area
with
a
soft
brush.
Clean
the
bobbin
thread
monitor
as
instructed
on
page
157.
Apply
a
drop
of
oil
in
the
hook
receway,
as
shown
in the
illustration,
every
15
to 20
hours
of
operation.
Other
than
that,
the
machine
is
main
tenance-free
and
must
not
be oiled.
Inserting
the
needle
plate
Place
the
needle
plate
on
with
its
left
side
first
and
press
it in until
the retai
ning
hook
snaps
in
audibly.
Then
press
the
right
side
firmly
down
until
it
also
snaps
in.
Check
the
correct
posi
tion
of
the
needle
plate.
-I
Changing
the
light
bulb:
•
Disconnect
the
mains
plug.
Swing
out
the
work
support
to the
left.
Close
the
hinged
top
cover
and
swing
up
the
carrying
handle.
Insert
the
edge
guide
into
cutout
D,
push
down
the
lamp
housing
and
hold
it
there.
Push
the
bulb
upwards,
turn
it
towards
A and
take
it
out.
Insert
the
new
bulb
so
that
its
pins
enter
slots
C.
Push
it
up
and
turn
it towards
B.
Pull
out
the
edge
guide.
Be
sure
to
use
only
a
15-watt
light
bulb
in
the
sewing
lamp.
