Operating the machine
12

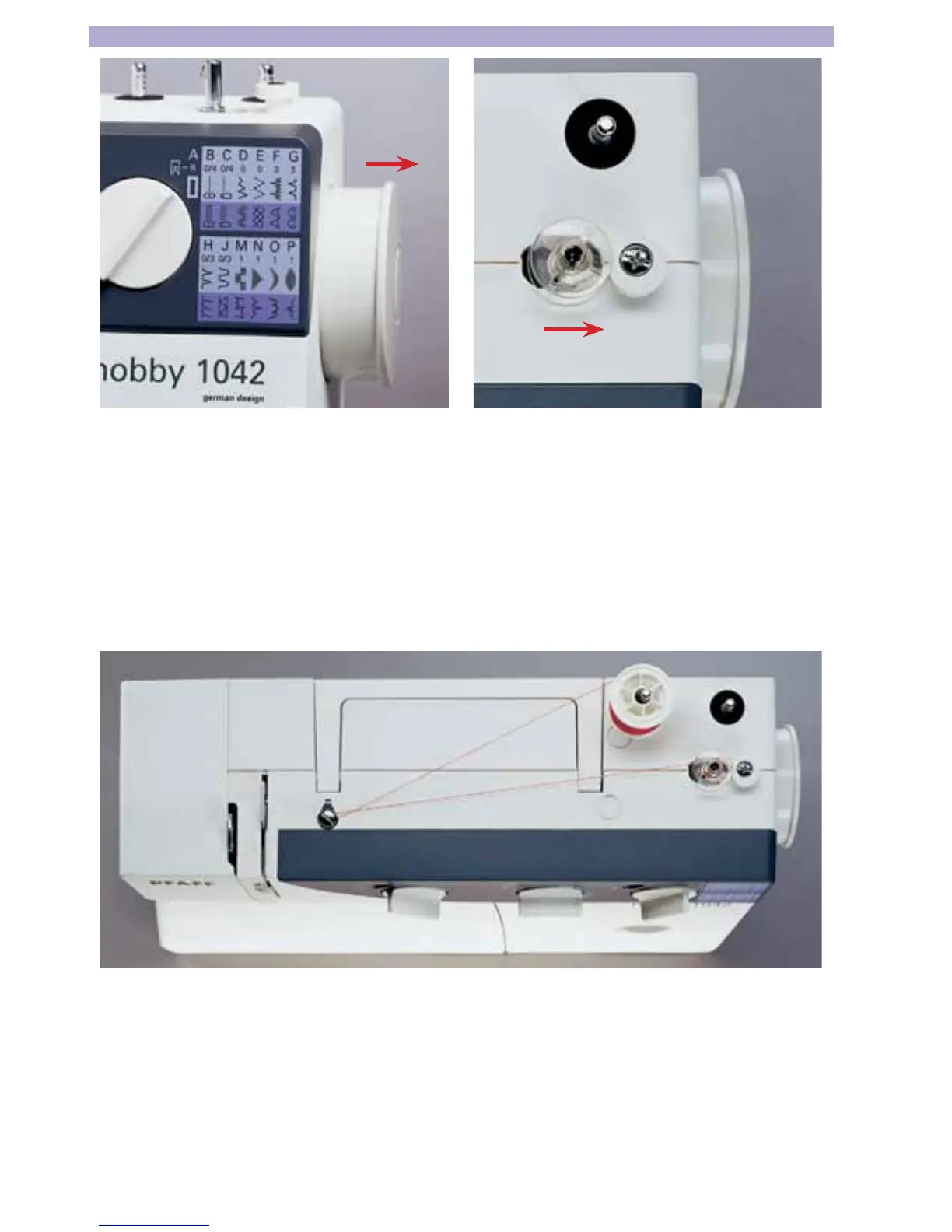

Preparing the machine for bobbin
winding
Pull the handwheel (7) fully to the right.
This will prevent the needle moving while
the machine is winding the bobbin.
Mounting the bobbin
Switch off the master switch (12)
Place the empty bobbin onto the pin of
the bobbin winding mechanism and press
it down as far as possible. Push the bob-
bin to the right.
Note: The bobbin can only be wound if
it is moved fully to the right.
Winding the bobbin
Pull the spool holder (5) up and place a spool on it.
Place the thread clockwise into the bobbin winder tension (2) and run it to the bobbin.
Wind the thread clockwise around the bobbin several times.
Turn the master switch (12) on and press the foot pedal.
Let go of the thread after a few revolutions. As soon as the bobbin is full the winding
action will be stopped automatically. Press the full bobbin to the left and remove it from
the pin.
