Operating the machine
13

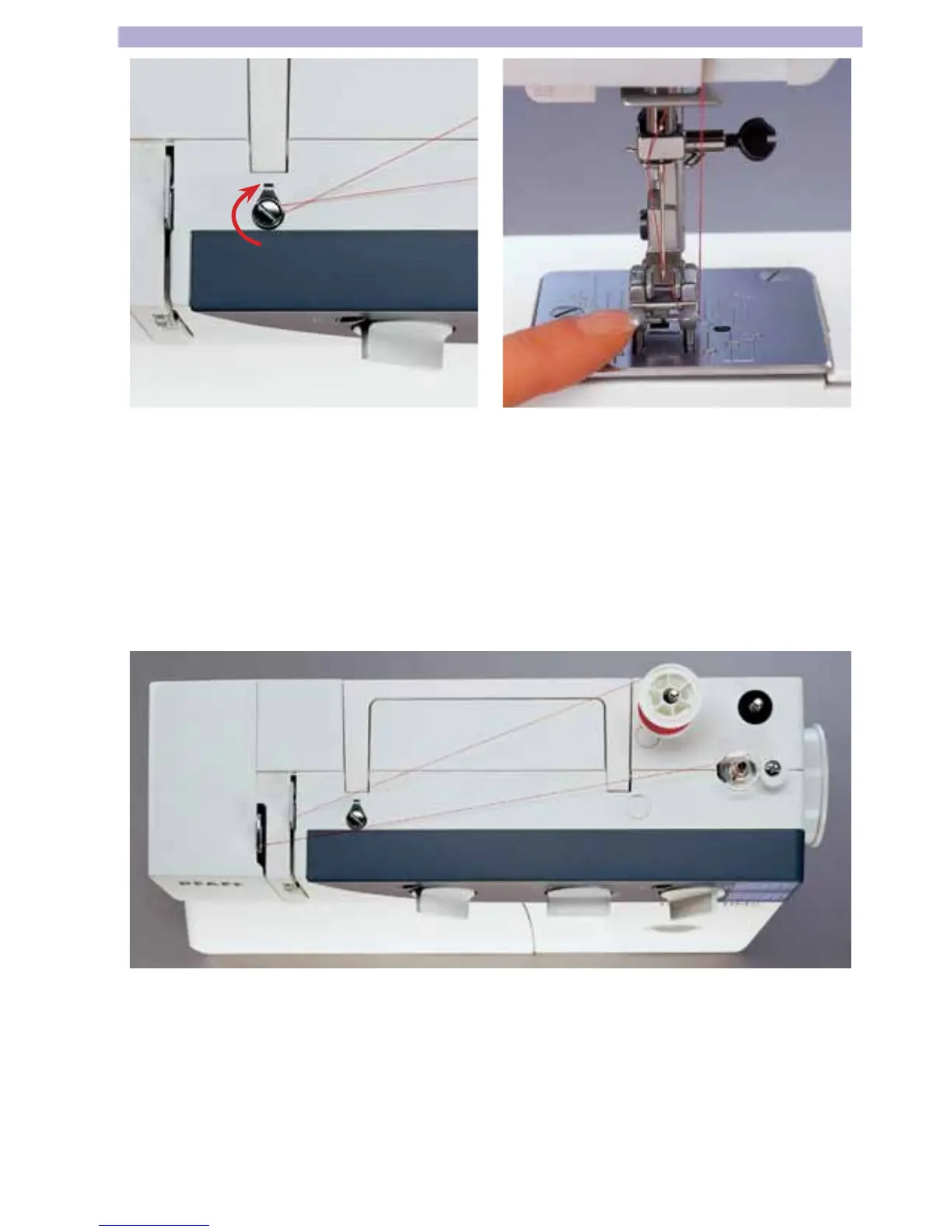

Winding a bobbin through the needle
It is possible to wind bobbins even when
the machine is threaded. Raise the press-
er bar lifter (26) to the top position. Pull
the thread underneath the presser foot.
Bobbin winder tension
Pass the thread through the bobbin
thread tension (2) in a clockwise direction,
so that it crosses over itself on the way to
the bobbin.
Pull the thread upward through the left-hand threader slot (18). Place the thread from
left to right through the take-up lever (28). Wind the beginning of the thread several
times around the bobbin in a clockwise direction. Hold the end of the thread À rmly and
press the foot pedal.
Tip: While winding the bobbin, gently push down the front of the presser foot with
your finger.
Don·t forget: After winding a bobbin, press the handwheel (7) back to the left!
