Pfaff hobby 1142 Service Manual

220 V-240V
120V
(L)
(M)
(H)
(A)
(B)
(C)
(D)
(E)
(G)
300 g
7 - 9mm
(A)
(H)
(H)
(L)
(M)
104 72 62-26 25

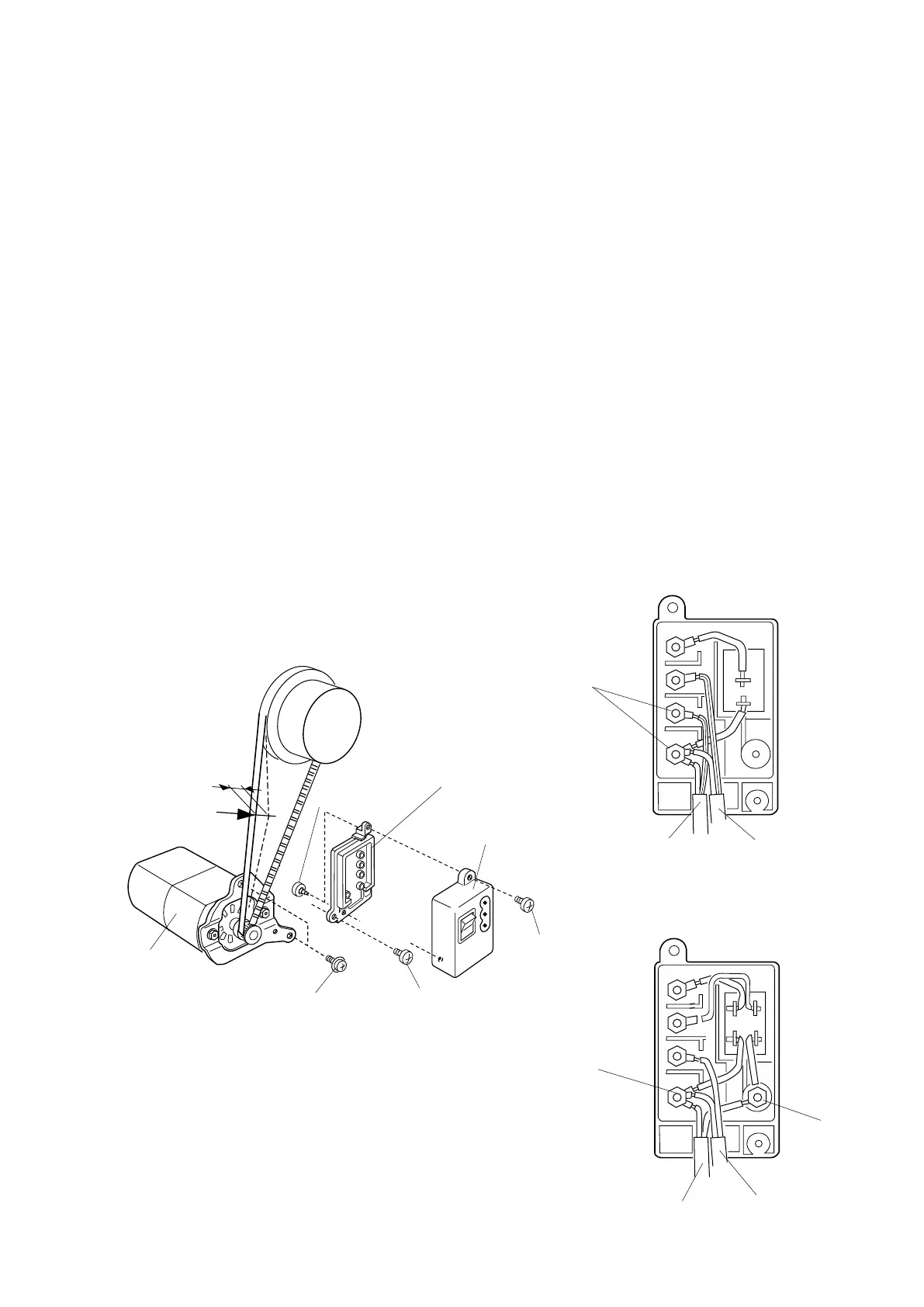

Replacing Motor and Adjusting Motor Belt Tension
Removing the motor
• Remove the face plate, base cover, front cover and rear cover.
• Remove the setscrews (A) and machine socket (D). Remove the setscrews (B) and machine socket lid (E).
• Remove the nuts (H) and disconnect the motor cord (M).
• Remove the setscrews (C) and motor (G) .
• To attach the motor, follow the above procedure in reverse.
Adjusment
• Slightly loosen the setscrews (C).
• While pushing the middle of the motor belt with a 300 grams load, move the motor up or down so that the belt
deflects 7 to 9 mm.
• Tighten the setscrews (C) securely.
M = Motor Cord
L = Lamp Cord

Pfaff hobby 1142 Specifications

General

Buttonhole	1-step
Stitch Width	5 mm
Stitch Length	4 mm
Needle Positions	Variable
Free Arm	Yes
Needle Threader	No
Drop Feed	Yes
Type	Mechanical
Number of Stitches	23
Bobbin Type	Front loading
Presser Feet Included	Standard foot, Zipper foot, Buttonhole foot
