Pfaff hobby 1142 Service Manual

(E)
(F)
(A)
(B)
104 72 62-26 9

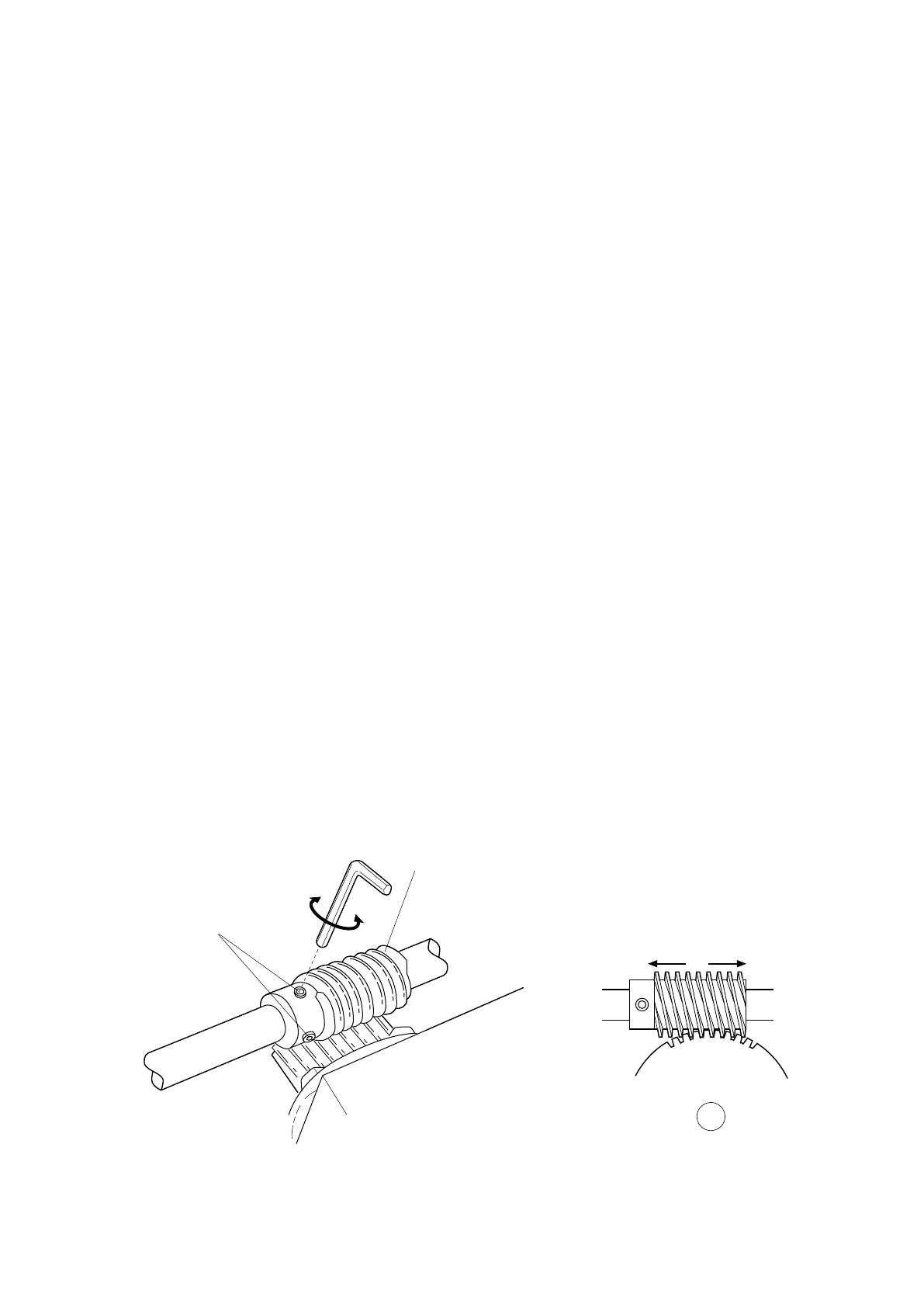

Adjustment of the play in worm gear
Requirement
It is impossible to obtain an equally large play in one rotation of the gear wheel (C) , but it should be as small as
possible at the tightest spot during the revolution.
Check
Rotate the gear wheel (C) back and forth and check the play. It should be zero or as small as possible.
Adjustment
• Remove the front cover
• Loosen the 2 setscrews (A) and move the worm :
- to increase the play, move the worm (D) to the direction of (E).
- to decrease the play, move the worm (D) to the direction of (F).
• Tighten the setscrews (A) on the worm (B) securely.
• Check that the setting “ Adjustment of the sideways movement of the needle in zigzag” hasn’t changed.
• Attach the front cover.

Pfaff hobby 1142 Specifications

General

Buttonhole	1-step
Stitch Width	5 mm
Stitch Length	4 mm
Needle Positions	Variable
Free Arm	Yes
Needle Threader	No
Drop Feed	Yes
Type	Mechanical
Number of Stitches	23
Bobbin Type	Front loading
Presser Feet Included	Standard foot, Zipper foot, Buttonhole foot
