Pfaff PowerLine 2231 Setup Instructions

18
4 Assembling the sewing machine drive
4
.01 Assembling the motor
4
.01.01 P45 PD2-L and P74 ED-L

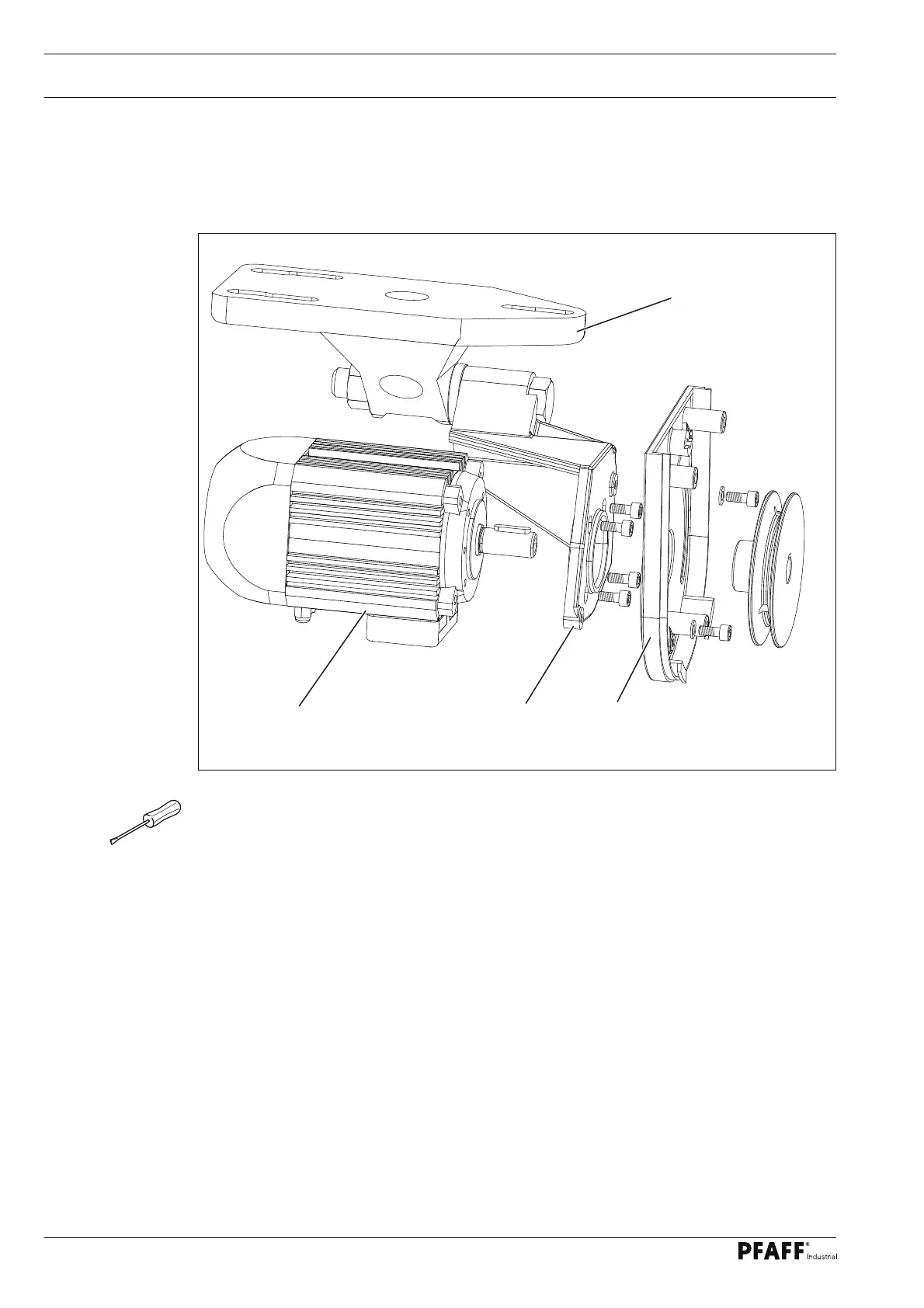

Fig. 4 - 01
1
2
3
● Assemble motor mounting 1, motor 2, belt guard support 3 and belt pulley 4 as shown in
Fig. 4-01.
4
Sewing machine drive
4.01.02 AB 321 and PF 321
● Mount the motor bracket, motor, belt guad bracket and pulley in accordance with the in-
structions in the instruction manual for the drive.
