Stand and table top
4,2x13 (4x)

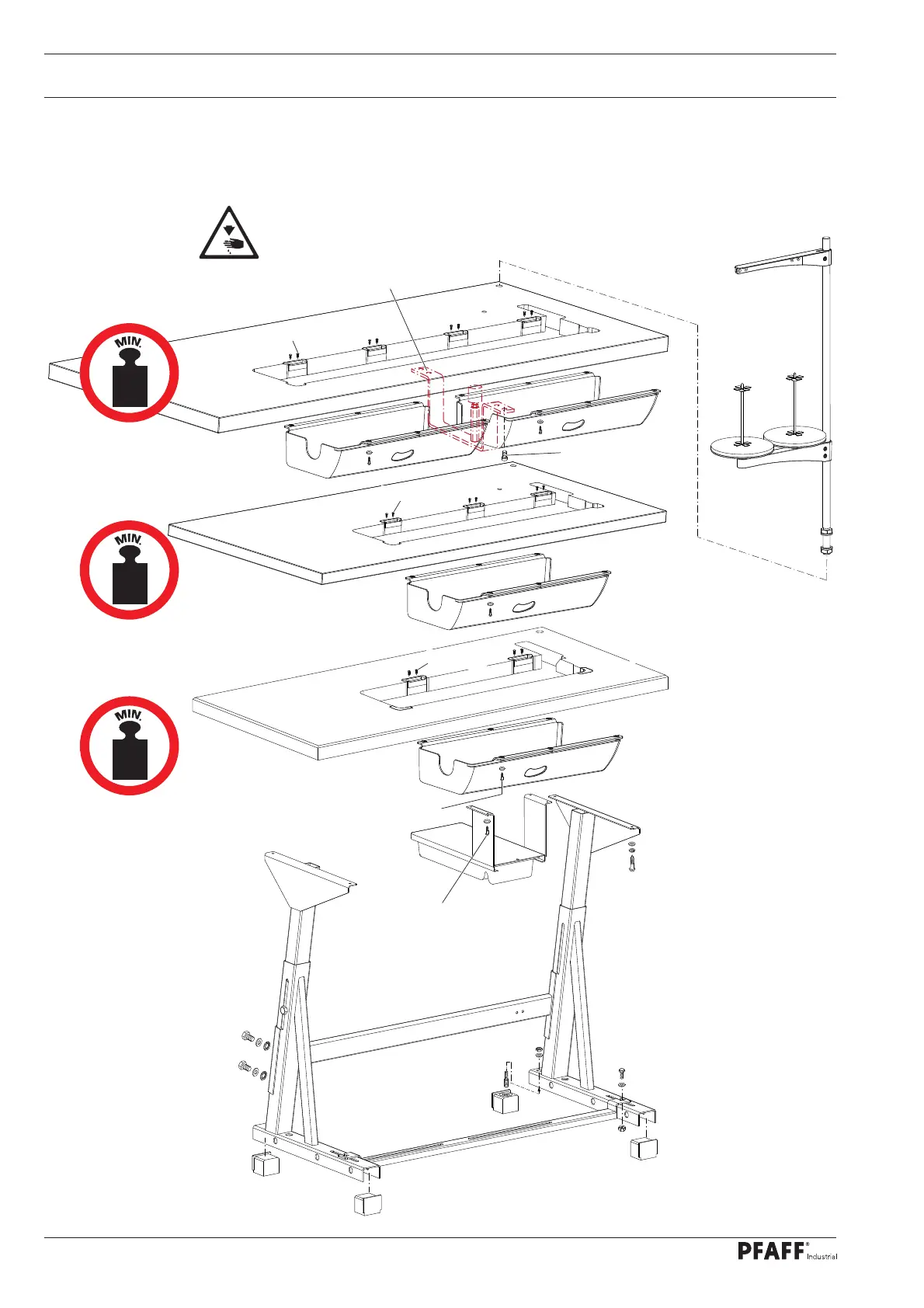

3.03 Assembling the stand and table top
● Assemble the stand and table top as shown in the following illustration.
● The assembly instructions in Section 3.02 must be followed.
Depending on the design, stand and table top must be confi gured f
or the
following minimum weight:
Fig. 3- 03
6x40 (4x)
3x20 (6x)
M10x20 (4x)
4x30 (4x)
4,2x13 (6x)
4,2x13 (8x)
M8x16 (4x)
Clearance width 700 mm
Clearance width 1000 mm
Clearance width 350 mm
kg
100
kg
150
kg
170
 = Given the considerable
weight of the machine, do
not operate with out support
91-502 559-71/895!

