Pfaff PowerLine 2231 Setup Instructions

21
LED-Lamp
5 LED-Lamp (optional)
5.01 Assembling the LED lamp
● Unscrew the head and arm cover.
● Remove the complete voltage mounting plate.
● Assemble the LED lamps 1 as shown in Fig. 5-01.
● Install cable 2 in the recess of the machine arm and lead plug 3 down through the
machine.
● Secure cable 2 with clamps 4 and 5 and the corresponding available screw.
● Reattach the voltage mounting plate and head and arm cover.

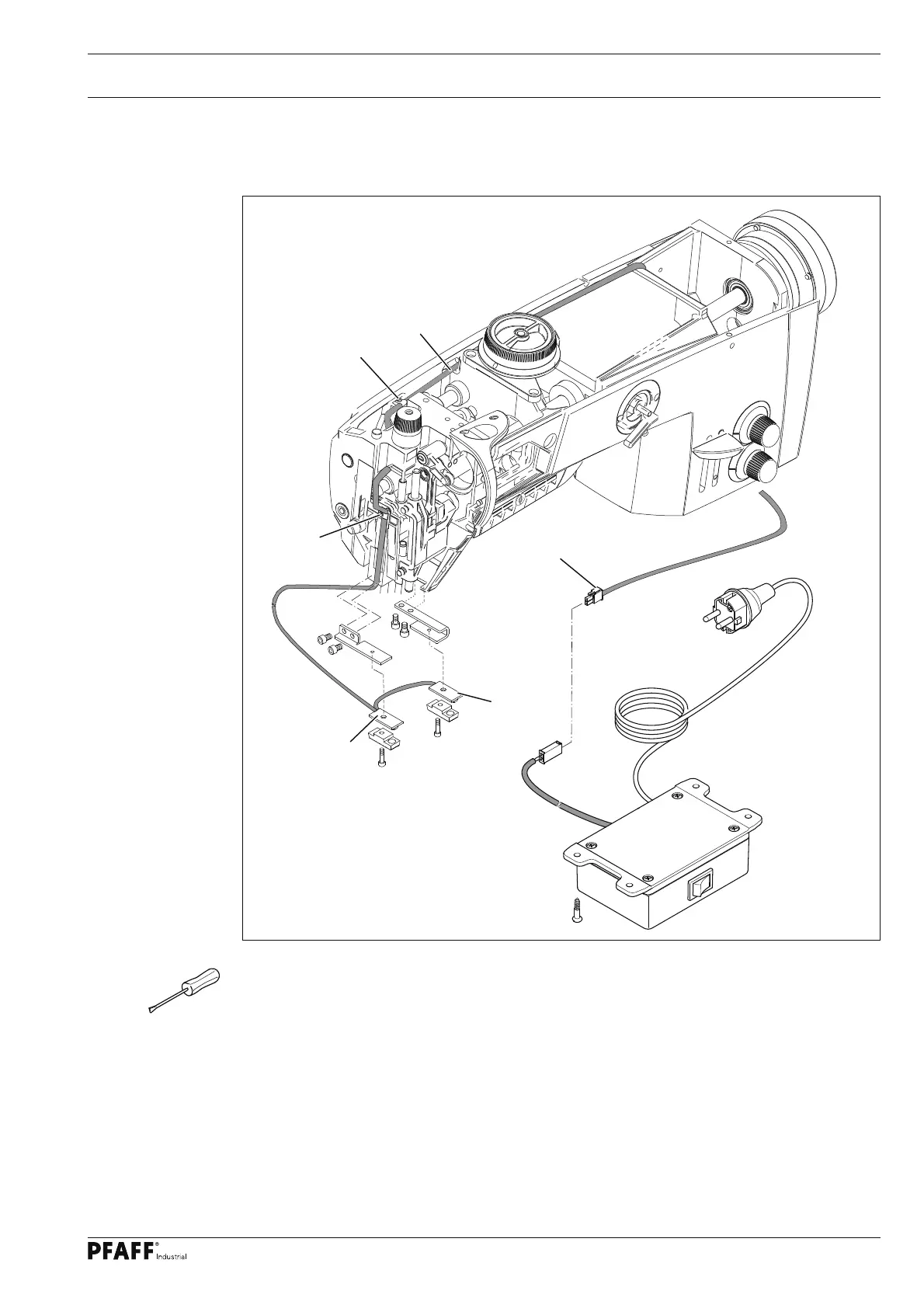

Fig. 5 - 01
1
1
3
5
4
2
