11

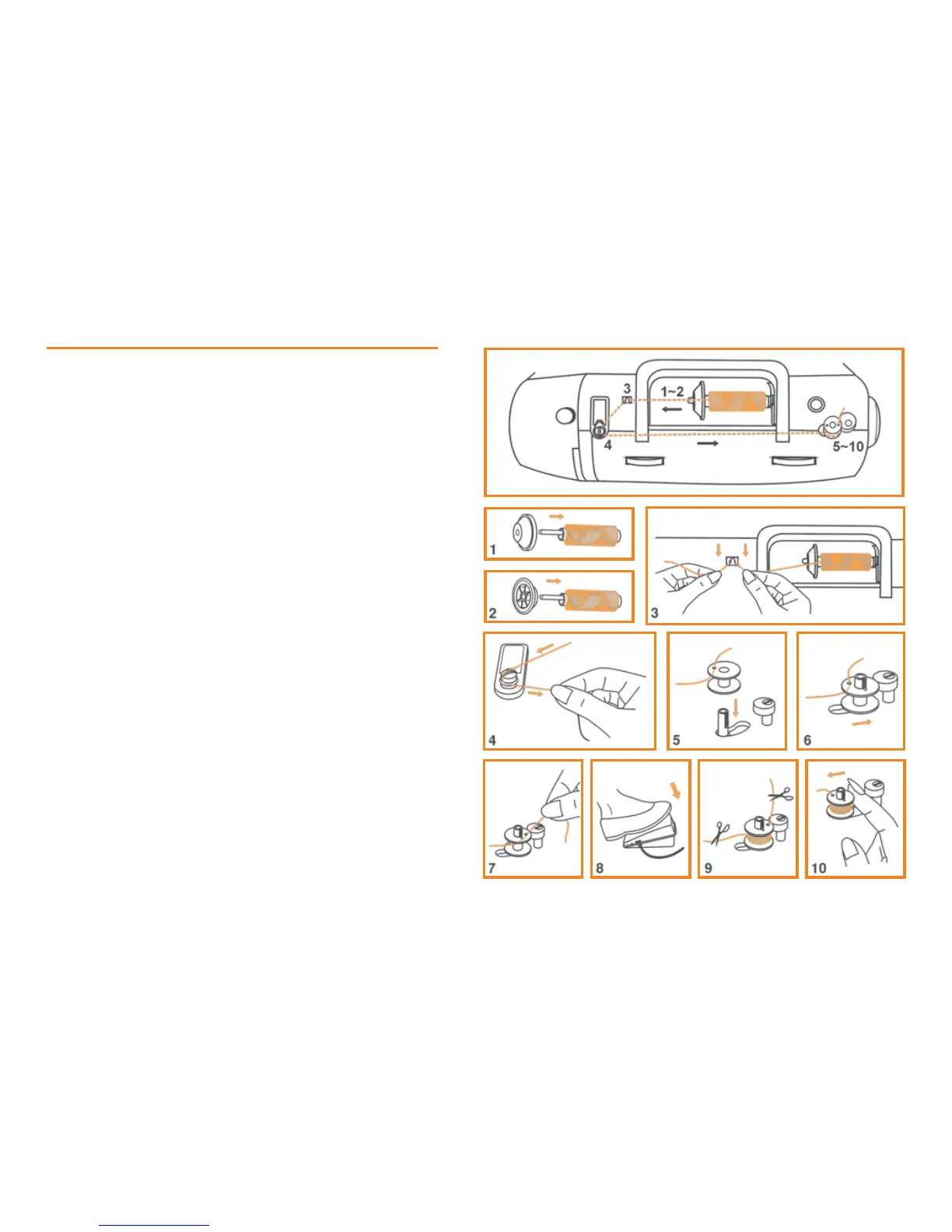

Winding the bobbin
- Place thread and spool cap onto spool pin (1).
For smaller spools of thread place spool cap with small
side next to spool (2).
- Snap thread into thread guide (3).
- Wind thread clockwise around bobbin winder tension discs
(4).
- Thread bobbin as illustrated and place on spindle (5).
- Push bobbin to right (6).
- Hold thread end (7). Step on foot control (8).
- Cut thread (9). Press bobbin to left (10) and remove.
Please Note:
When the bobbin winder spindle is in "bobbin winding" position,
the machine will not sew and the handwheel will not turn. To start
sewing, push the bobbin winder spindle to the left (sewing position).
