3

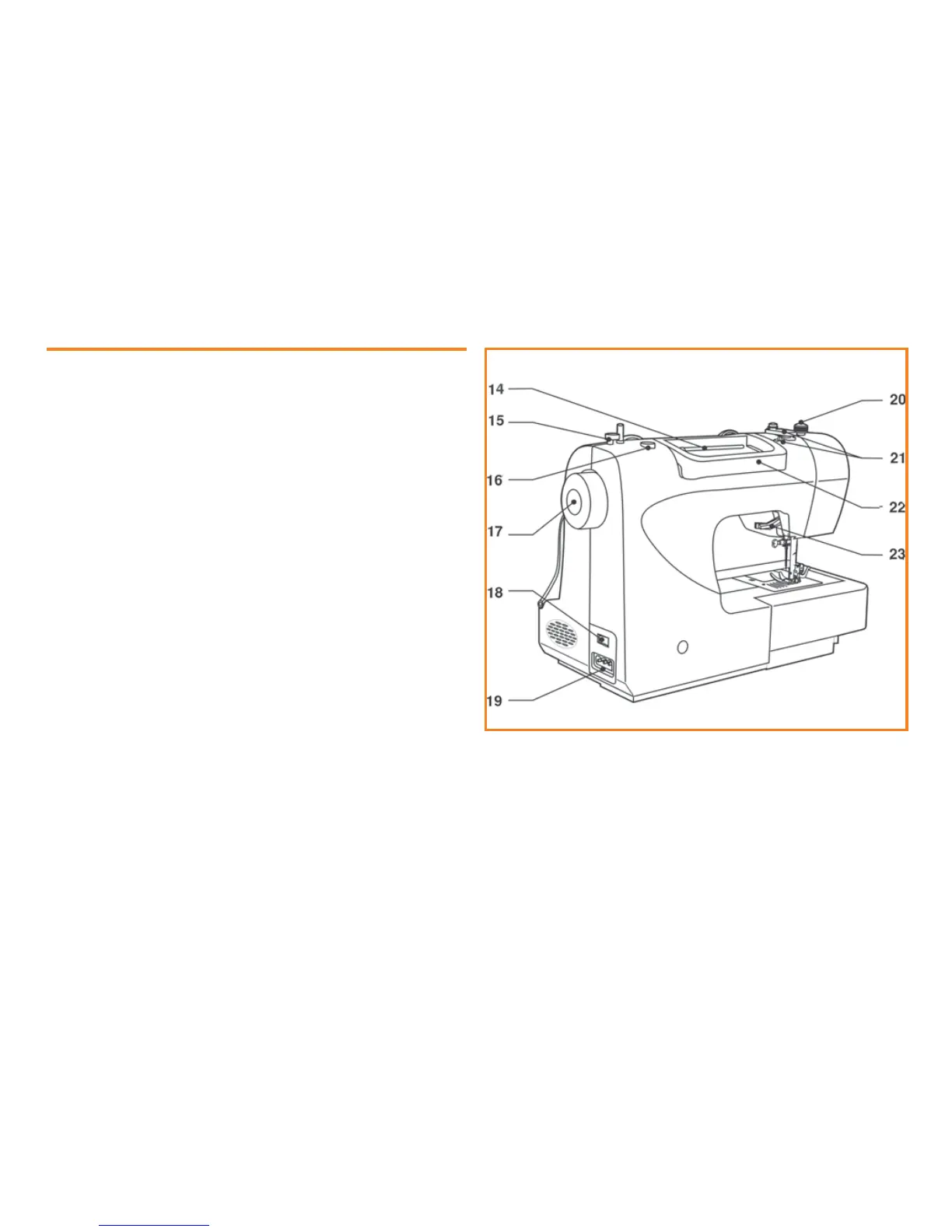

Principal parts of the machine
14. Spool pin
15. Bobbin winder stop
16. Hole for second spool pin
17. Handwheel
18. Main switch
19. Main plug socket
20. Presser foot pressure
21. Upper thread guide
22. Handle
23. Presser foot lifter
