5.3 Establishing the electrical connection
DANGER
Danger to life due to dangerous contact voltage
Voltages above 30 V (AC) or 60 V (DC) are considered dangerous in accordance with EN 61010. If
you come into contact with dangerous contact voltage, this can result in injury through electric shocks
or even death.
Only connect the product to devices which meet the following criteria:
Requirements of the earthed protective extra-low voltage (PELV)
Limited power source (LPS) Class 2
Secure the line to the product.
Pfeiffer Vacuum measuring and control equipment complies with this requirement.
NOTICE
Damage sustained as a result of improper connection
Improper connection, incorrect polarity or impermissible supply voltage will damage the gauge.
Always connect the supply earth (Pin 5) with the earth for the supply unit.
Always connect the shielding (Pin 6) with the earth for the supply unit.
To operate the gauge with a Pfeiffer Vacuum total pressure measuring and control unit, you will require
a corresponding measurement cable from the ActiveLine Accessories. Otherwise, you can also manu-
facture a measurement cable specifically for this purpose.
Establishing the electrical connection
Required tool
Torque wrench (≤ 0.2 Nm)
Required material
Measurement cable (as an accessory or manufactured for this purpose)
1. Connect the measurement cable to the gauge.
2. Tighten the locking screw on the Hirschmann cable socket.
Tightening torque: ≤ 0.2 Nm
2
3
4
5
6
+
+
1
Signal
4.7
Ident
4.7

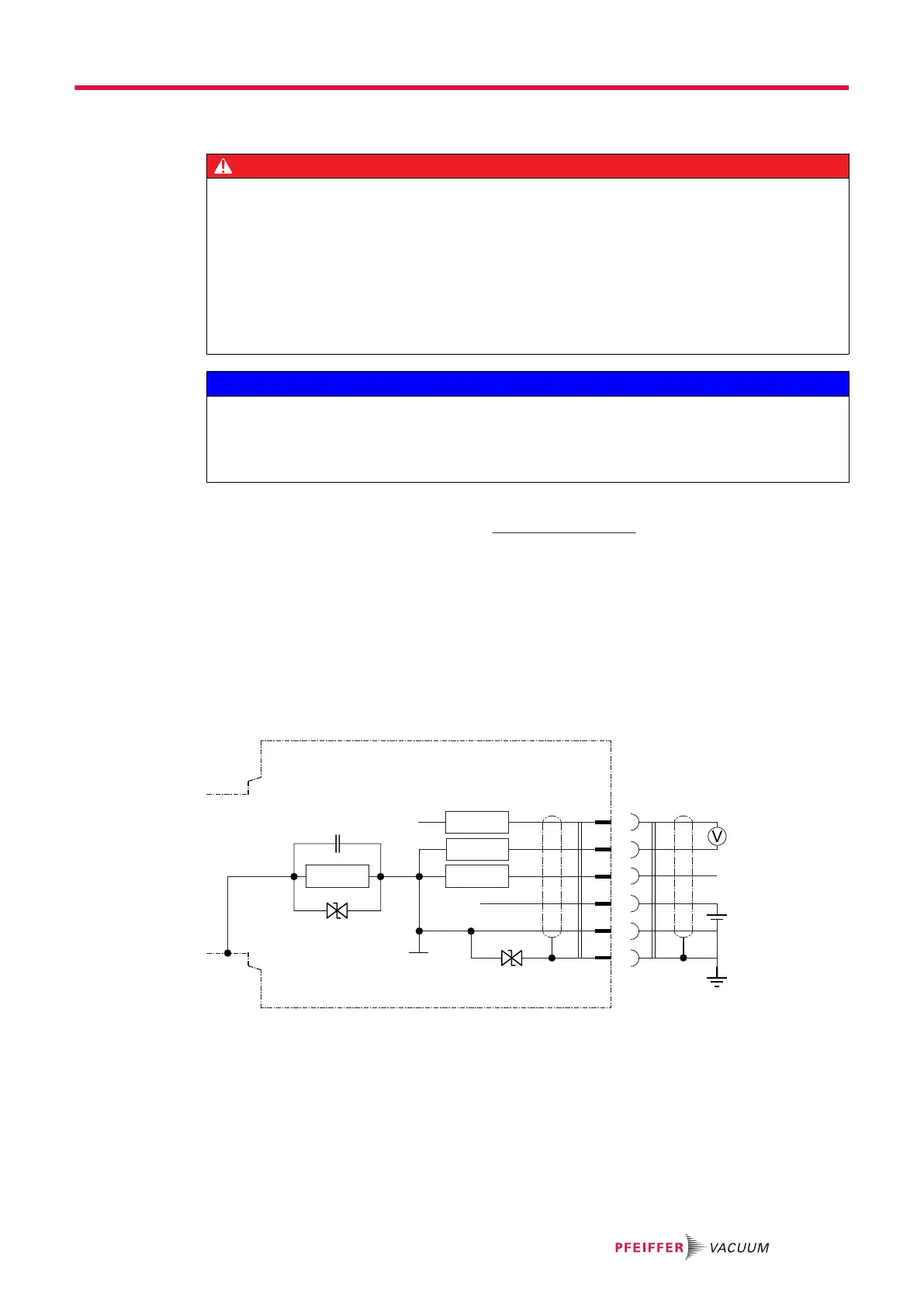

Fig. 4: Connection diagram
1 Identification 4 Supply
2 Measuring signal 5 Supply earth (GND)
3 Signal earth 6 Screening, shielding
Installation
23/62
