4 Installation
4.1 Connecting the air cooling for 24 V DC
Prerequisites
●
Turbopump switched off and vented
Required tools
●
Open-end wrench, WAF 7
●
Allen key, WAF 2.5
●
Allen key, WAF 3
3
2
4
5
1

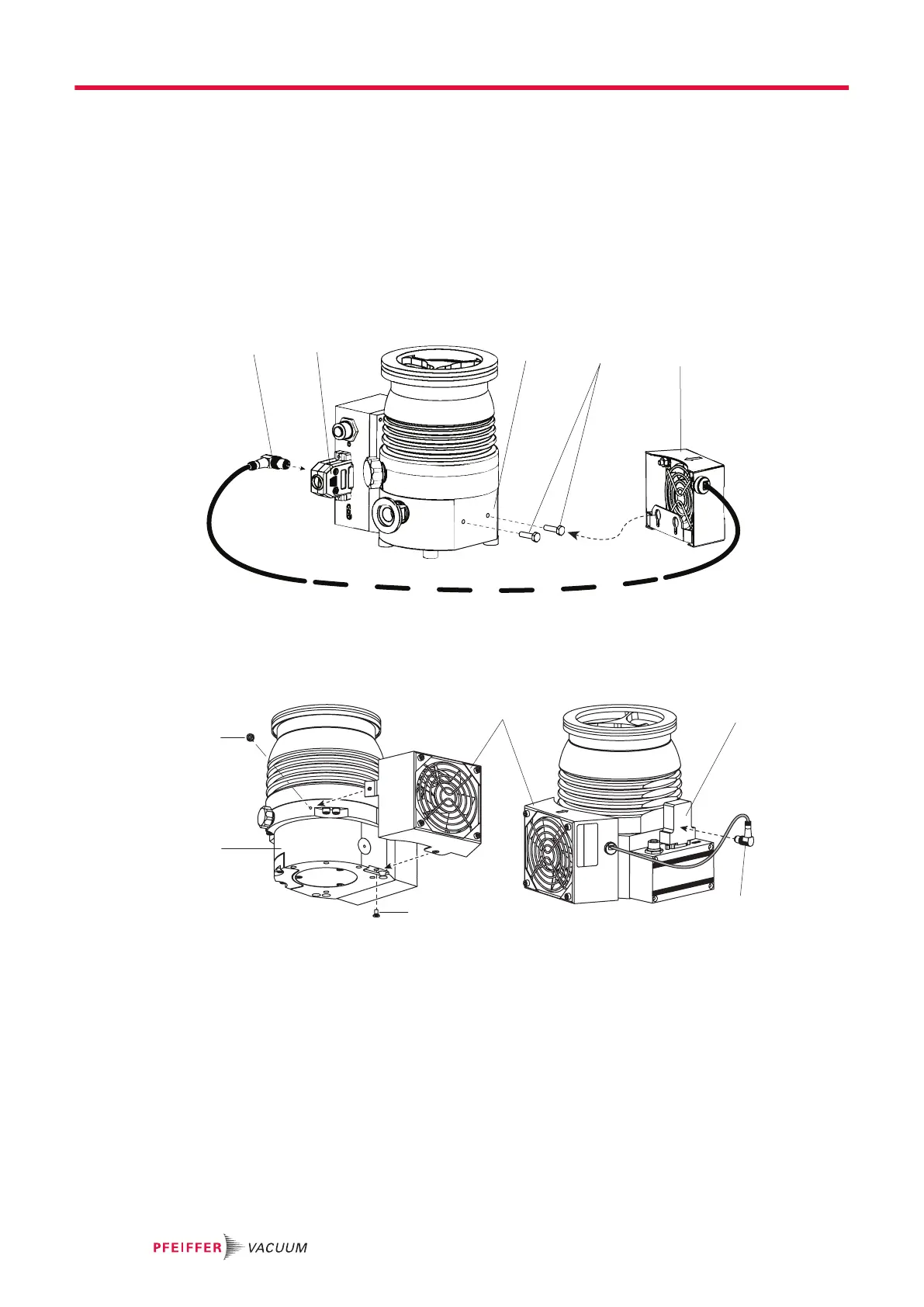

Fig. 3: Connecting the air cooling to HiPace 30, HiPace 80, HiPace 60 P and SplitFlow 50
1 Control cable connector plug 4 Hexagon head set screw
2 15-pin D Sub plug on multi-function connection "X3" 5 Air cooling
3 Pump bottom part
6
5
4
3
1
2
Fig. 4: Connecting the air cooling to HiPace 300 with TC 110/TC 120
1 Air cooling 4 Countersink screw
2 15-pin D Sub plug on multi-function connection "X3" 5 Pump bottom part
3 Control cable connector plug 6 Interior hexagon socket screw
Installation
