Pfeiffer Vacuum SplitFlow 50/80 - Fig. 5: Connecting the Air Cooling to Hipace 300 with TC 400; Fig. 6: Connecting the Air Cooling to Hipace 350 and Hipace 450

2
1
4
3
5

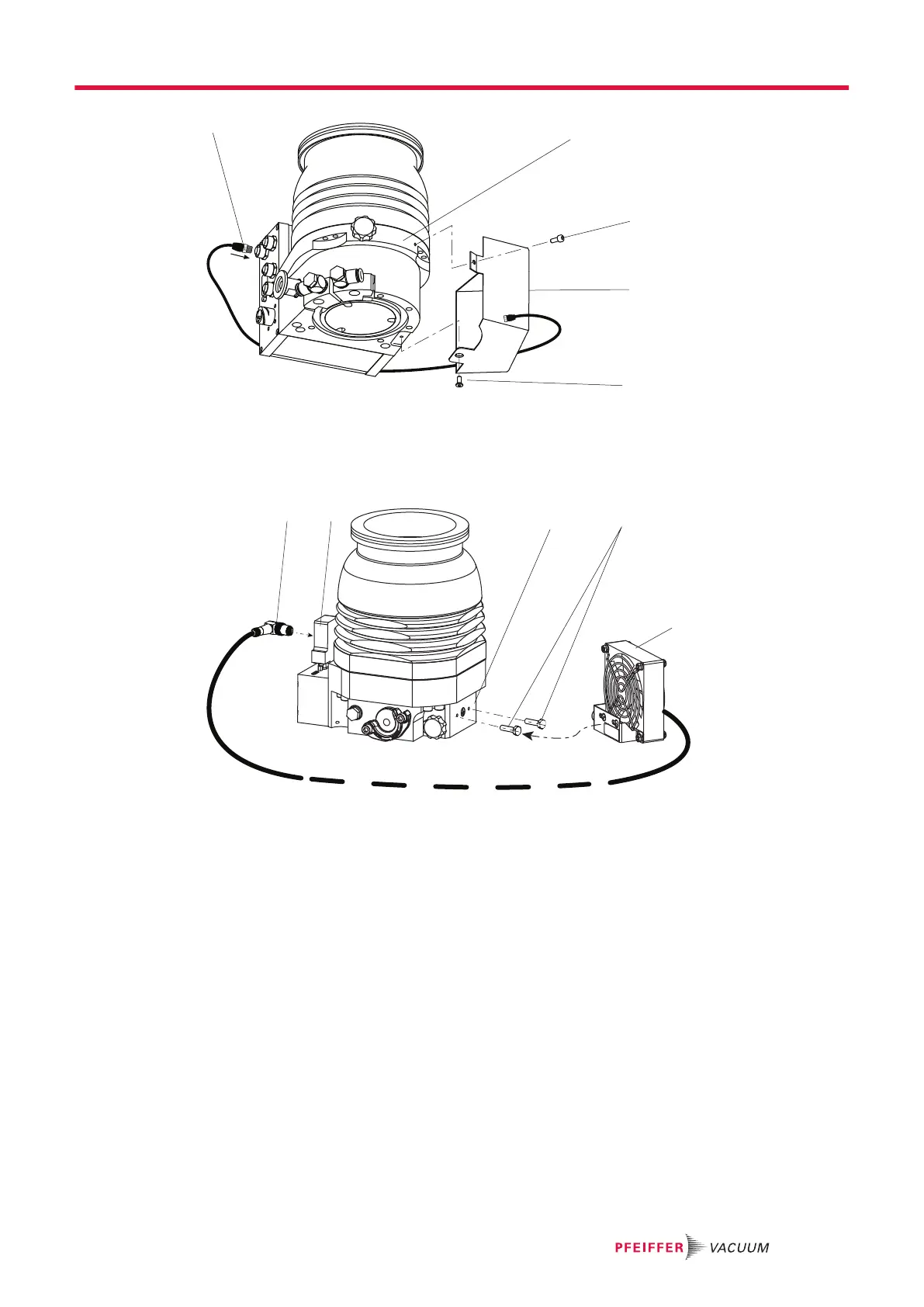

Fig. 5: Connecting the air cooling to HiPace 300 with TC 400
1 Control cable connector plug 4 Air cooling
2 Pump bottom part 5 Countersunk screw
3 Interior hexagon socket screw
3
4
5
1
2
Fig. 6: Connecting the air cooling to HiPace 350 and HiPace 450
1 Control cable connector plug 4 Hexagon head set screw
2 15-pin D Sub plug on multi-function connection "X3" 5 Air cooling
3 Pump bottom part
Installation
13/26
