Pfeiffer Vacuum SplitFlow 50/80 - Dimensions; Tbl. 10: Air Coolings 115;230 V;AC; Fig. 12: Dimensions PM Z01 300 a | PM Z01 360 a | PM Z01 348; Fig. 13: Dimensions PM Z01 301 a | PM Z01 302 a | PM Z01 361 a | PM Z01 362 a

Classification Air Cooling Air Cooling
Part number PM Z01 343 PM Z01 344
Pump HiPace 60 P | HiPace 80 | Split-
Flow 50/80
HiPace 60 P | HiPace 80 | Split-
Flow 50/80
Mains connection: Voltage 230 V 115 V
Tbl. 10: Air coolings 115/230 V/AC
7.2 Dimensions
36.8
81.2
63
85.3

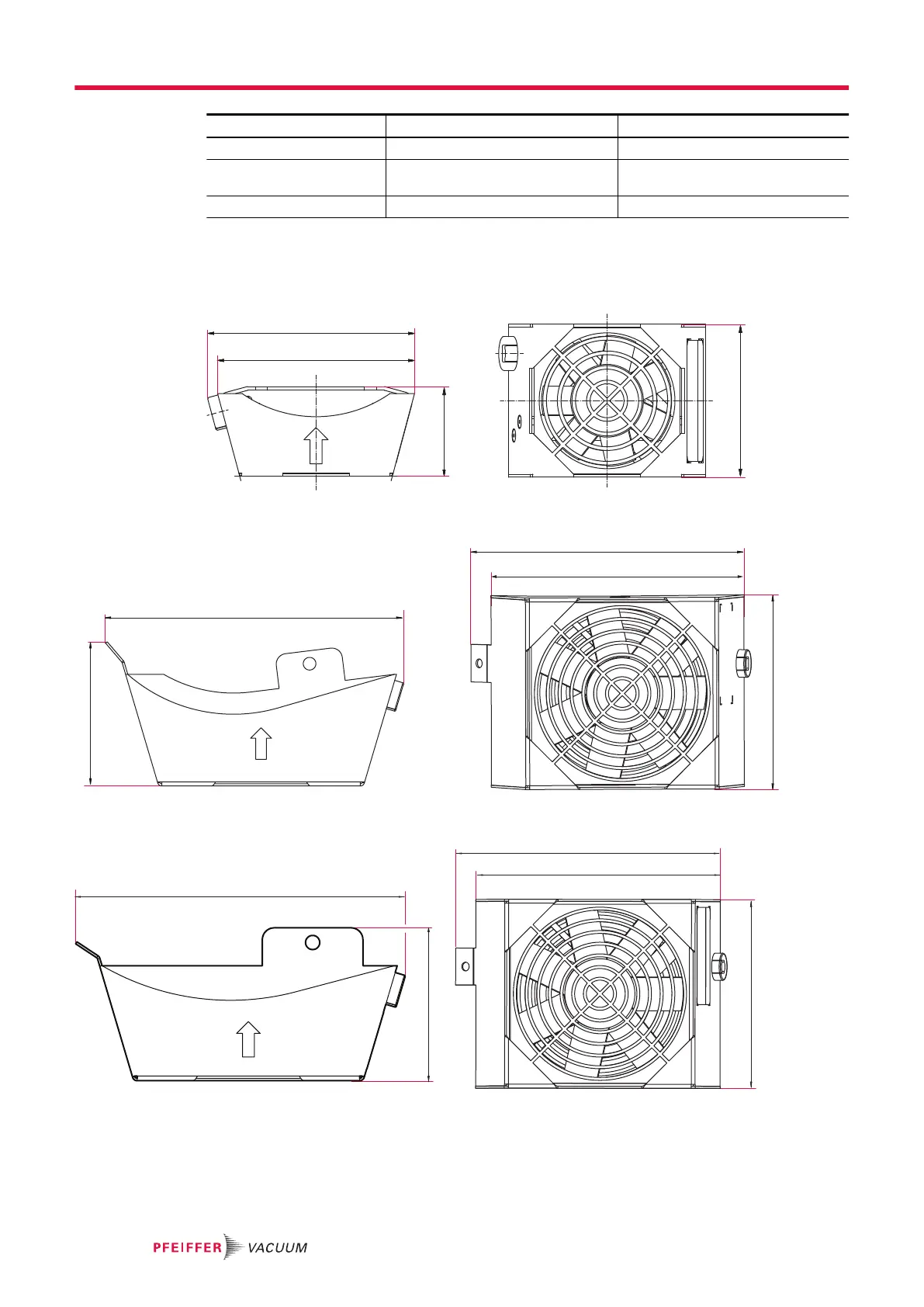

Fig. 12: Dimensions PM Z01 300 A | PM Z01 360 A | PM Z01 348
141.1
68.3
137.7
128.2
97
Fig. 13: Dimensions PM Z01 301 A | PM Z01 302 A | PM Z01 361 A | PM Z01 362 A
139.3
58.7
135.8
125.6
97
Fig. 14: Dimensions PM Z01 303 A | PM Z01 363 A
Technical data and dimensions
