14
Connection "X3"
Cross-linking via the connection RS-485

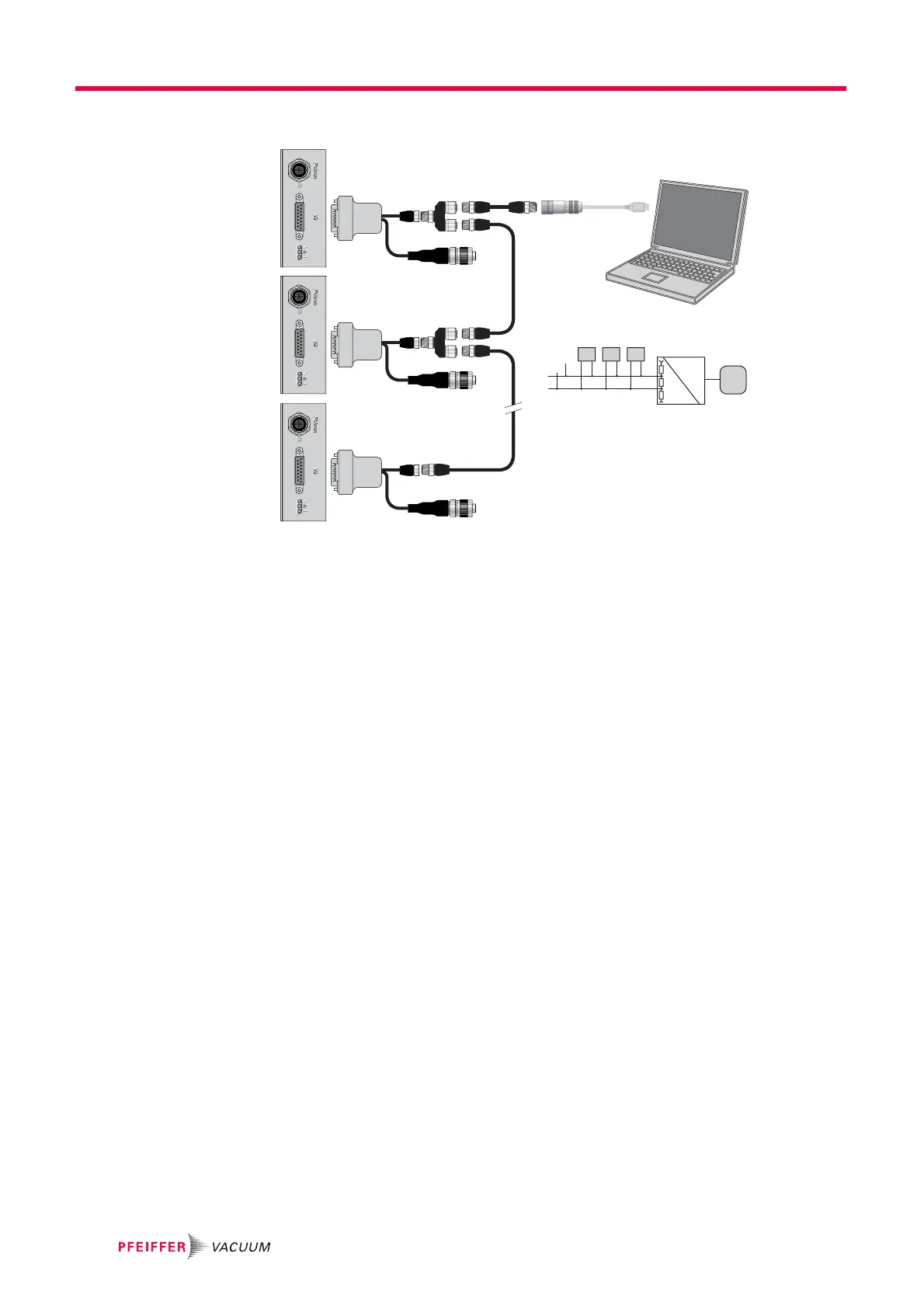

Fig. 5: Cross-linking via connection RS485 with connection cables and accessory
Establish the connections according to the specification of the interface RS-485.
Connect all units with RS-485 D+ and RS-485 D- to the bus.
● The group address of the electronic drive unit is 961.
● All units connected to the bus must have differing RS-485 device addresses [P:797].
USB/RS485-converter
Y-Connector
RS485
RS485
RS485 M12 M12
M12
M12
TC TC
D+
D-
USB/RS485-converter
RS 485
USB
PC
