Product description
3 Product description
3.1 Product identification
3.1.1 Product characteristics
The electronic drive unit TC 110 is an integrated component of the turbopump. It's pur-
pose is to drive, monitor and control the entire pump.
To correctly identify the product when communicating with Pfeiffer Vacuum, always have
the information from the rating plate available.

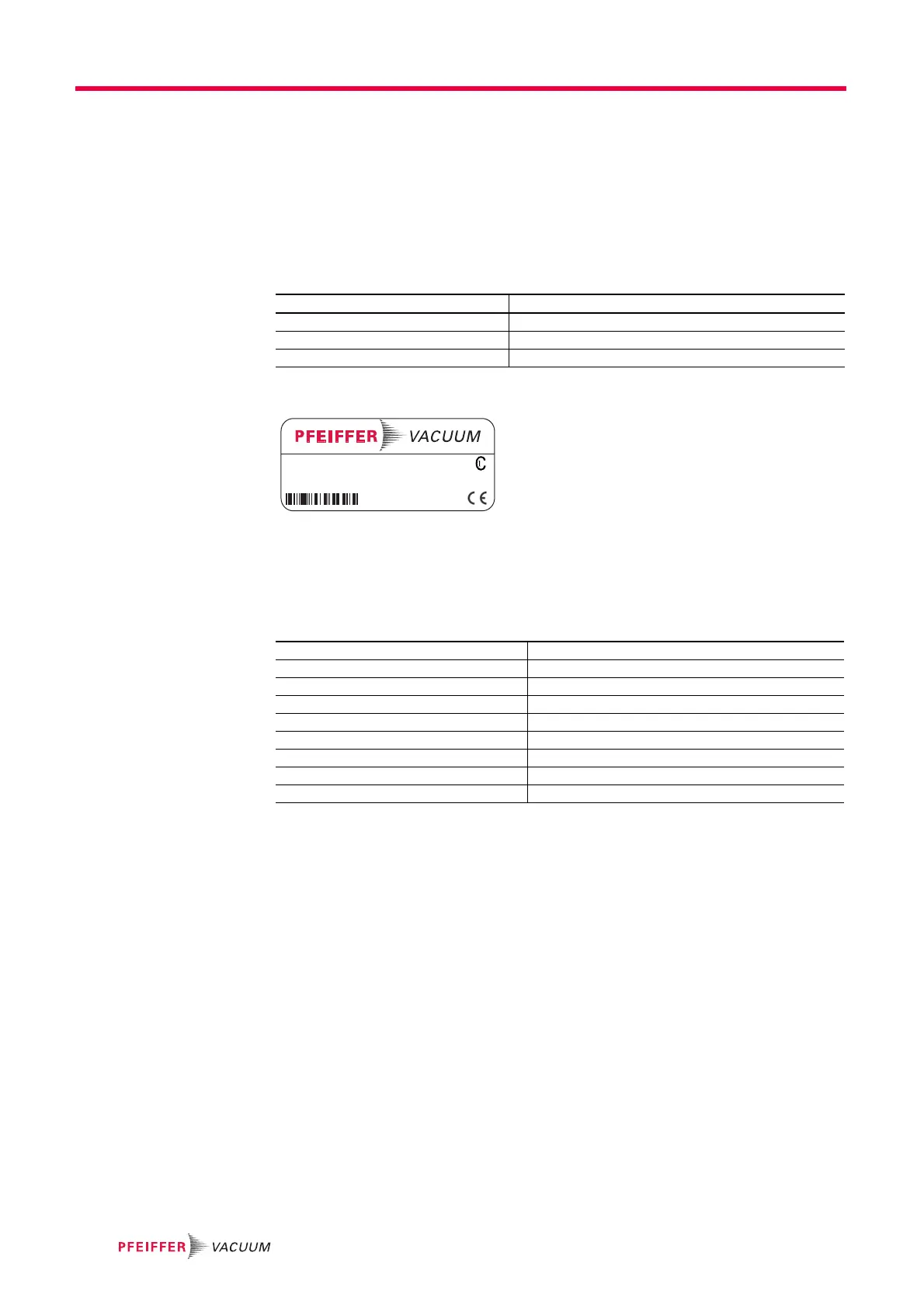

Fig. 1: Example for a rating plate
3.2 Range of application
Pfeiffer Vacuum electronic drive units TC 110 must be installed and operated in the fol-
lowing ambient conditions.
Characteristics TC 110
Connection voltage TC 24 V DC ± 5 %
Connection panel Standard (X3)
Turbopump HiPace 10, 30, 60, 80, 300, SplitFlow 50, 80
Mod.:
M.-No.:
Ser. -No.:
Oil:
S(N
2
):
n,f:
Made in Germany
HiPace 300
DN 100 ISO-K, 3P
PM P03 900
---
260 l/s
60000 1/min, 1000 Hz
Weight:
6.7 kg
D-35614 Asslar
Installation location weather protected (indoors)
Protection category IP 30
Protection class III
Temperature +5 °C to +40 °C (up to +35 °C with air cooling)
Relative humidity max. 80 %, at T ≤ 31 °C, up to max. 50% at T ≤ 40 °C
Atmospheric pressure 750 hPa - 1060 hPa
Installation altitude 2000 m max.
Degree of pollution 2
Overvoltage category II
