PFISTERER CONNEX cable connector Size 3 and 3/S Assembly / Installation 19

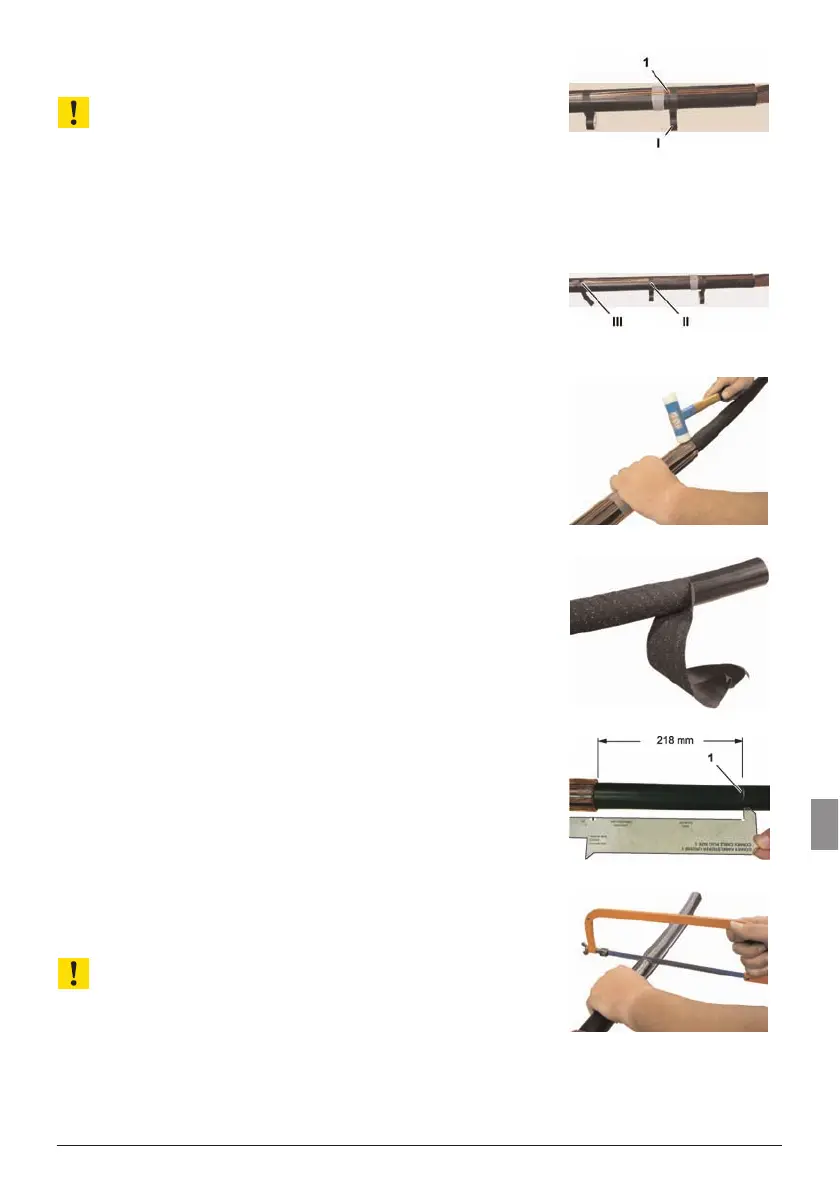

12. Fold over groups of screen wires.
ATTENTION!
Route screen wires in parallel, without crossing each
other!
13. Fix screen wires with adhesive tape (I) at the
reference length (1) and …
... at the other two spots (II and III).
14. Tear off the remaining adhesive tape no longer
needed after all screen wires have been folded over
and fixed.
15. Beat screen wires tight at jacket cut.
16. Remove wrapping up to the cut mark on jacket.
17. Mark the end of the cable (1):
– 218 mm from the cut mark on the jacket
– or using the measuring template, size 3.
18. Cut off the cable at the mark using a metal cutting
saw.
ATTENTION!
To obtain a straight cut, the cable must be cut with a
metal cutting saw.
