PFISTERER CONNEX cable connector Size 3 and 3/S Assembly / Installation 21

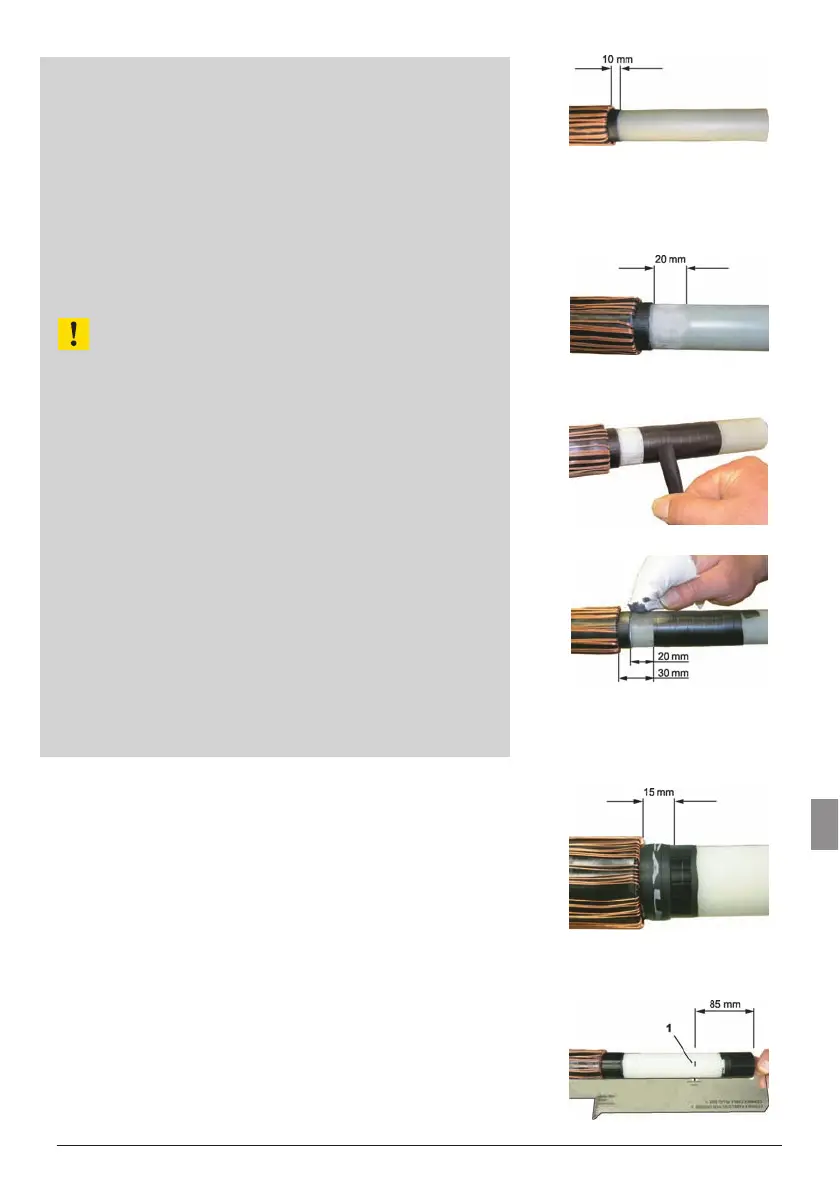

In case of removable easy strip semi-conducting layer:
a) Make a mark on the extruded removable easy strip
semi-conducting layer 10 mm from the jacket cut.
b) Pull off extruded removable easy strip semi-con-
ducting layer up to 10 mm from the jacket cut,
following manufacturer's specifications.
c) Roughen conducting layer 20 mm with electrical-
purpose emery cloth with max. 120 grain.
ATTENTION!
Use only electrical-purpose emery cloth with max.
120 grain (e.g. Al-Oxide 120 grain).
d) Apply a protective wrapping next to the roughened
conductor insulation (with adhesive side facing
outward).
e) Apply an additional 20 mm wide conducting layer
with dry graphite (article No. 003 010 011) on the
roughened conductor insulation.
Observe overall dimension of 30 mm of remaining
semi-conducting layer.
f) Remove protective wrapping.
g) Continue with step No. 30.
30.
Stretch length of semi-conducting tape by approx. 1/3.
31. Pull of a “thick“ end.
32. Begin with the „thin“ end of semi-conducting tape
and apply approx. 3 layers, 15 mm wide, to jacket
cut.
33. Tear off remaining semi-conducting tape.
34. Mark the conductor:
– 85 mm from the cable end,
– or using the measuring template, size 3.
