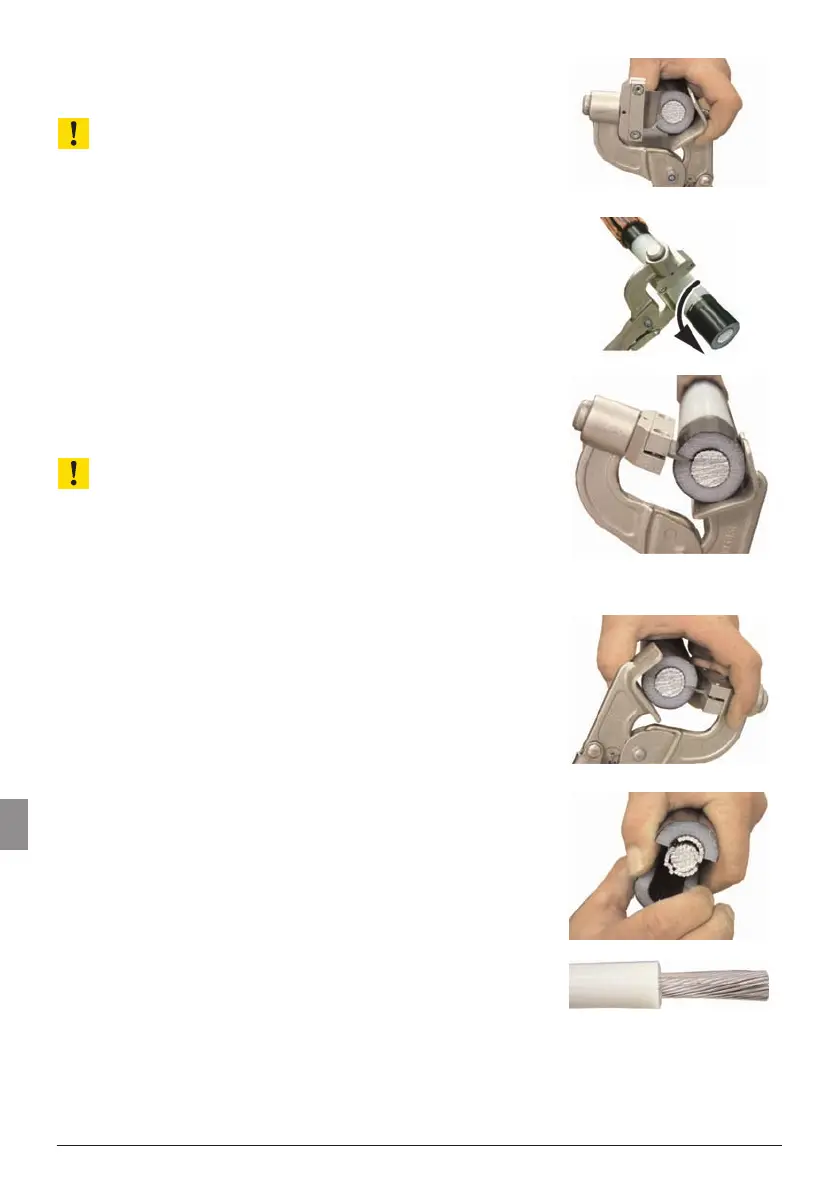

35. Set stripping pliers to depth (down to the black
smooth conductor surface.
ATTENTION!
Set depth so that the conductor is not damaged.
36. Cut insulation at mark (85 mm) all around (observe
rotational direction! – See illustration) down to the
smooth conductor surface.
37. Reposition stripping pliers.
Check depth (down to black smooth conductor
surface), reset if required.
ATTENTION!
Set depth so that the conductor is not damaged.
38. Cut insulation lengthwise up to the mark (85 mm).
39. Cut insulation lengthwise on the opposite side up
to the mark (85 mm).
40. Remove insulation.
22 Assembly / Installation PFISTERER CONNEX cable connector Size 3 and 3/S
