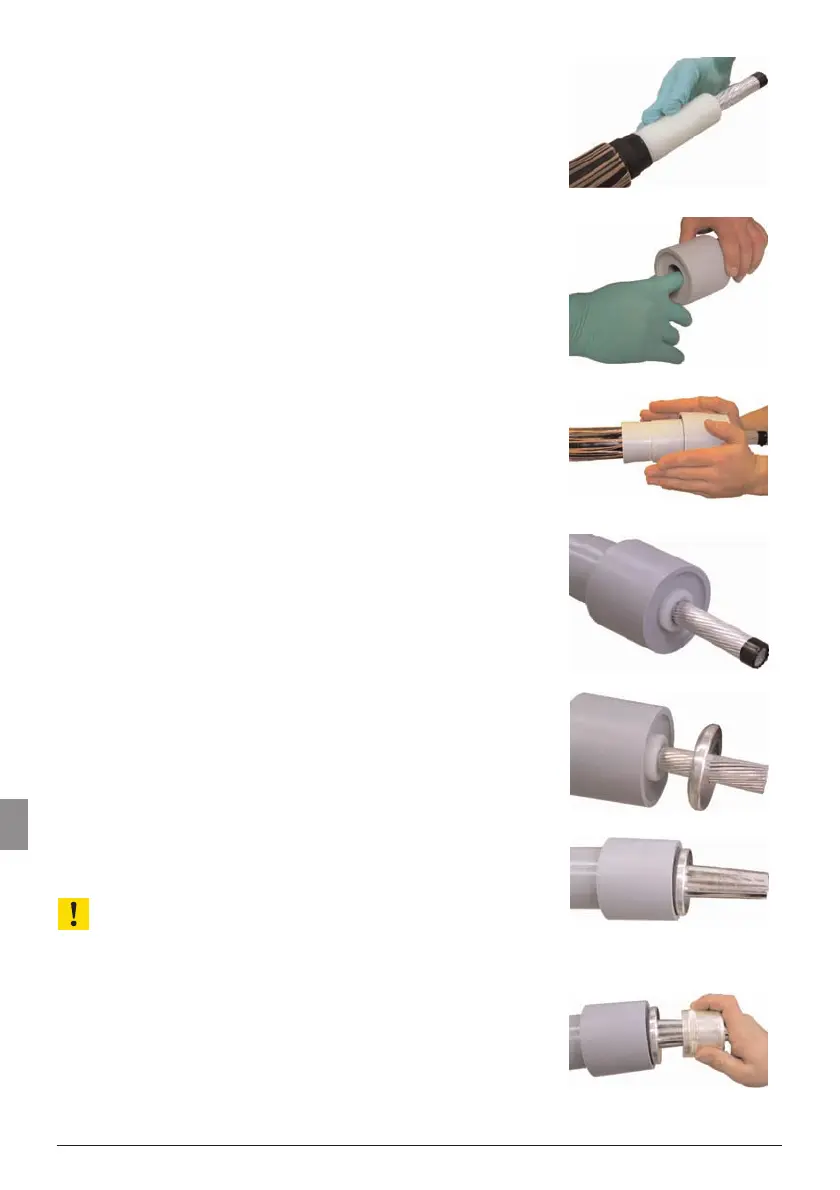

44. Apply thin and even coat of only PFISTERER-MV
special grease (article number 558 228 011) to
insulation.
45. Apply thin and even coat of only PFISTERER-MV
special grease (article number 558 228 011) to inside
of insulating part.
46. Push insulating part straight without twisting onto
the insulation until …
47. … approx. 10 mm of the insulation protrude.
48. Remove excess grease.
49. Remove protective wrapping from end of conductor.
50. Push thrust piece onto conductor with rounded
side facing the insulating part
.
51. Push tension cone onto conductor against the thrust
piece.
ATTENTION!
Conductor may not extend beyond tension cone.
52. Push contact ring onto tension cone.
24 Assembly / Installation PFISTERER CONNEX cable connector Size 3 and 3/S
