PFISTERER CONNEX cable connector Size 3 and 3/S Assembly / Installation 25

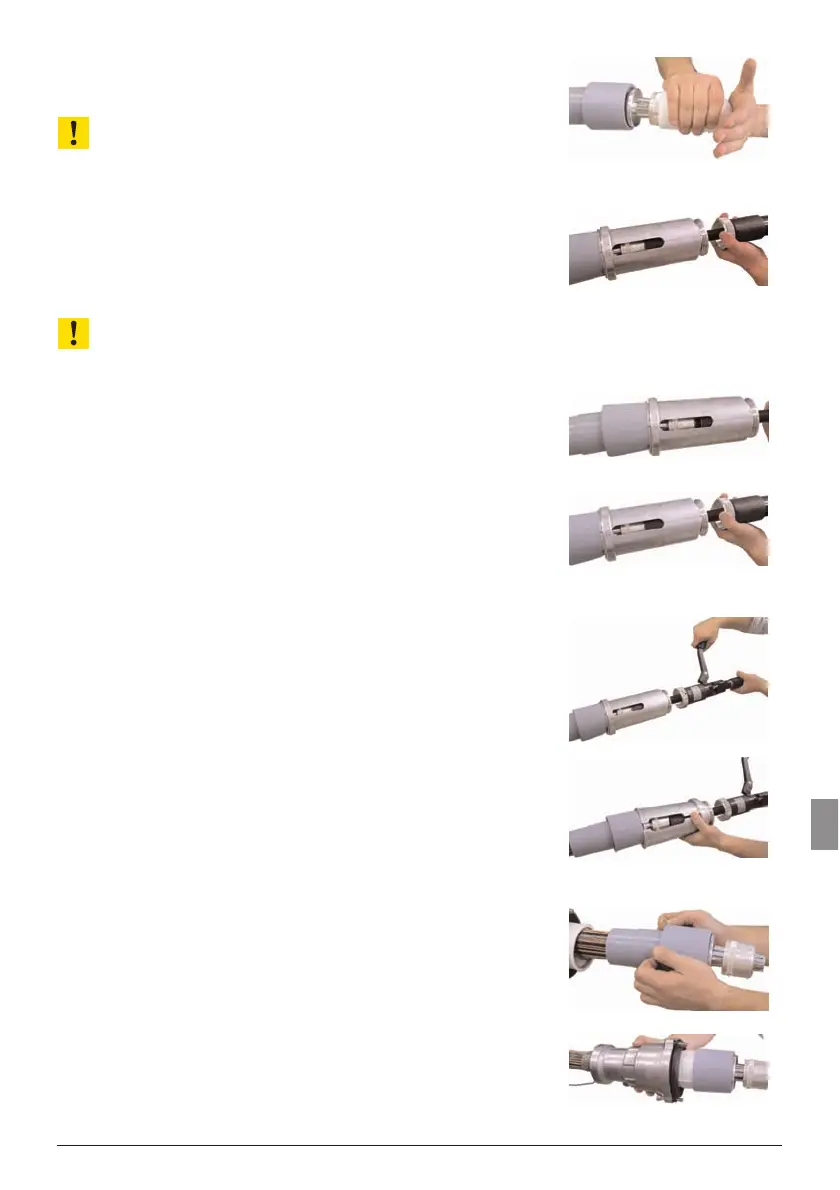

53. Fix contact ring on the tension cone using the impact
head. The contact ring must no longer be able to be
turned.
ATTENTION!
Hit the impact head only with the hand. Do not use
a tool.
54. Push the retaining ring of the compression head
toward the rear.
55. Position the half sleeves of the compression head
behind the thrust piece.
ATTENTION!
Do not damage insulating part.
56. Press half sleeves together and push retaining ring
forward.
57. Turn adjusting ring of manual compression tool
clockwise until the thrust piece of the compression
head rests against the contact ring.
58. Press contact ring onto tension cone, using the
manual compression tool, until the latter releases.
59. Push the retaining ring of the compression head
toward the rear.
60. Open the half sleeves of the compression head.
61. Remove compression head and manual compression
tool.
62. Pull insulating part straight without twisting flush
against the thrust piece.
63. Push bell flange onto the insulating part.
