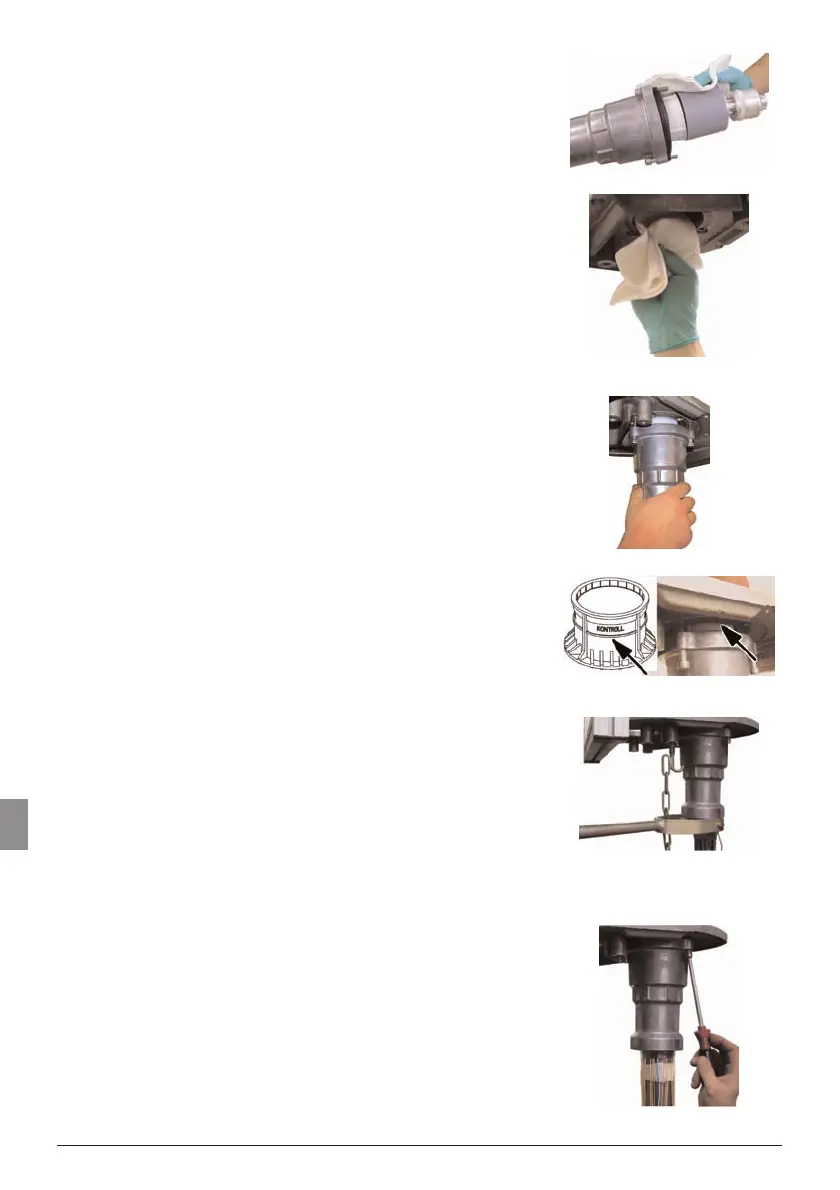

64. Clean surface of the insulating part and apply a
thin and even coat of PFISTERER-MV special grease
(article number 558 228 011) to it. Wear protective
gloves.
65. Clean inside of device connector and apply thin
and even coat of PFISTERER-MV special grease
(article number 558 228 011). Wear protective
gloves.
66. Introduce CONNEX cable connector into device
connector …
67. ... until the control ring below the “Control Mark“
lettering (see arrows) on the CONNEX cable
connector is flush with the outside flange of the
device connector.
68. If M12 threaded connection exists for system:
a) Screw chain into front eye.
b) Hook assembly lever into chain.
c) Press the bell flange against the outside flange
of the device connector using the assembly lever.
69. Tighten bolts with Torx screwdriver SW6 all around
and alternating against the block (fastening torque
approx. 15 Nm).
☞
NOTE!
When using the assembly lever (see step 68), keep it
pressed against the outside flange.
26 Assembly / Installation PFISTERER CONNEX cable connector Size 3 and 3/S
