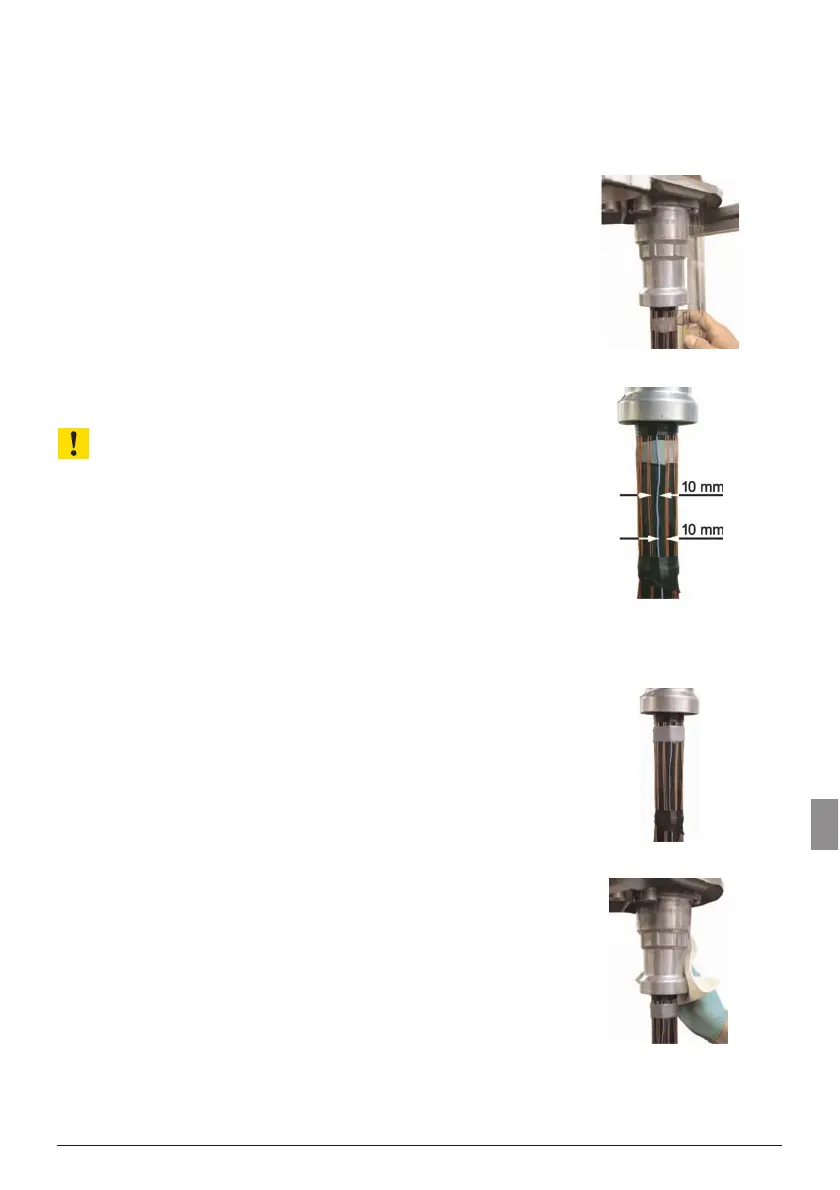

70. If used:
a) Unhook the assembly lever
b) Unscrew the chain
71. Check seat of contact using the measuring template,
size 3.
Push cable further up if required.
72. Fix test lead with adhesive tape.
ATTENTION!
Test lead may not cross screen wires and must run
parallel at a distance of at least 10 mm to the screen
wires.
73. If the scope of delivery does not include a piece of
shrink tubing
, the cable must be fixed with a cable
clamp immediately after the cable connector.
74. If
shrink tubing (in scope of delivery) is available:
a) Wrap second layer of sealing tape over the
screen wires onto the first layer of sealing tape.
b) Clean outside of bell flange.
PFISTERER CONNEX cable connector Size 3 and 3/S Assembly / Installation 27
