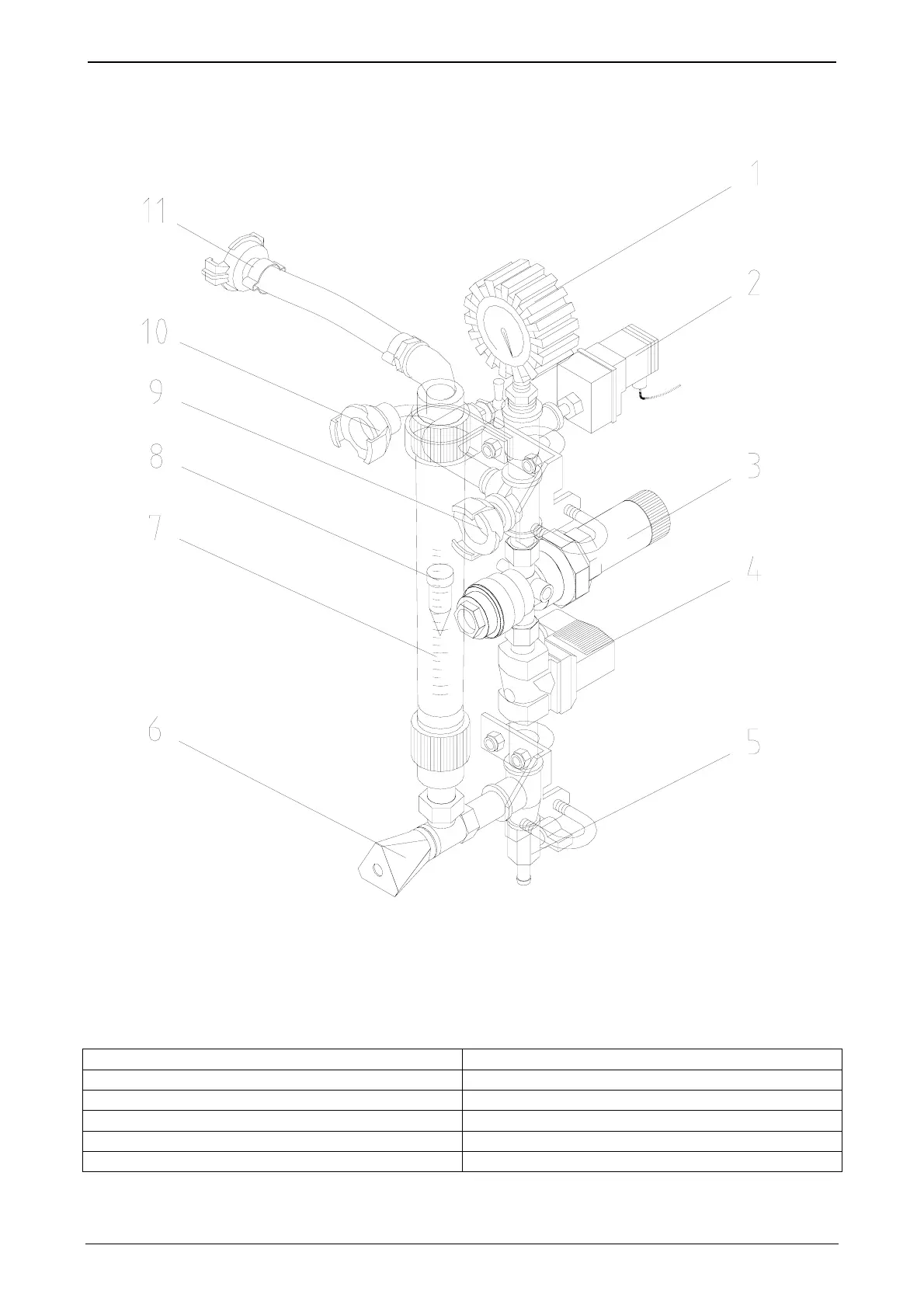

Overview of the water manifold, item number: 00 04 22 53
1. Water pressure gauge 2. Water safety switch
3. Pressure reducer 4. Solenoid valve
5. Outlet tap (antifreeze) 6. Needle valve (for regulating the water volume)
7. Water flow meter 8. Cone
9. Water supply 10. Water outlet valve
11. Water to mixing tube
