Connecting to Field Wiring Terminals

Open the front door of the enclosure to gain access to the wiring panel. See Figure 10 -

Figure 14.

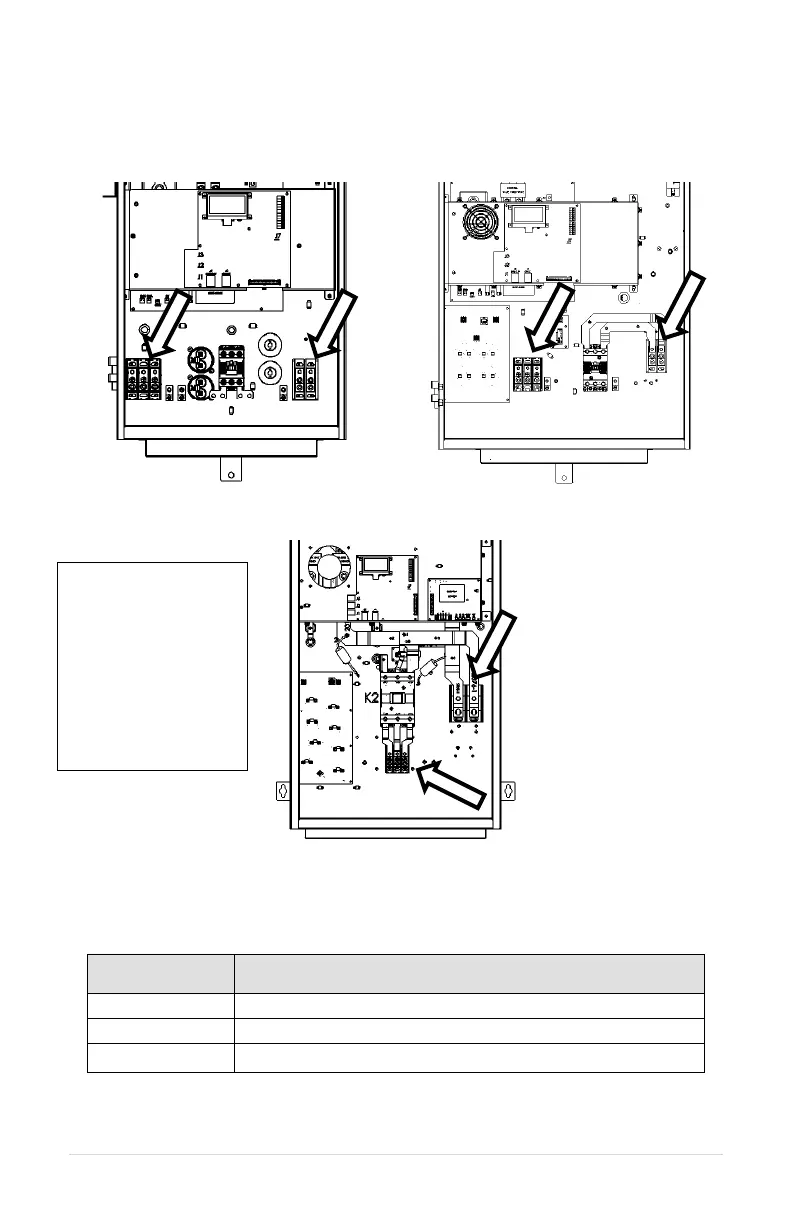

Figure 10 – PT Small Frame Field Wiring

Terminals

Figure 11 – PT Medium Frame Field Wiring

Terminals

Figure 12 – PT Large Frame Field Wiring Terminals

Table 20 – Power Terminal Descriptions

Terminal Name

Description

L1, L2

Single phase input power terminals

T1, T2, T3

3 Phase output power terminals, T3 is the “manufactured” leg.

GND

Earth ground

Small Frame Models:

PT407, PT410, PT415,

PT420

Medium Frame Models:

PT007, PT010, PT020,

PT430

Large Frame Models:

PT030, PT040, PT050,

PT060, PT075, PT440,

PT450, PT460, PT475,

PT4100
