34 | Page
V2.1
Table 26 – PT Nominal Filter Capacitor Values in MicroFarads (uF)
PT407, PT410, PT415, PT420
PTE007, PTE007QT, PTE010, PTE010QT,
PTE015, PTE020, PTE407, PTE407QT
PTE410, PTE410QT, PTE415QT, PTE420QT
PTE207, PTE210, PTE215, PTE220
PT030, PT040, PT440, PT450, PT460, PT475
PT050, PT060, PT075, PT4100
For 240V and voltage doubling PTE models (PTE0XX and PTE2XX), disconnect wires
from JL2 and use a multi-meter to measure between JL1 and JL2, then measure between
JL2 and JL3B. If either capacitance measured is below the 50% Capacitance value in
Table 26, contact Phase Technologies for replacement.

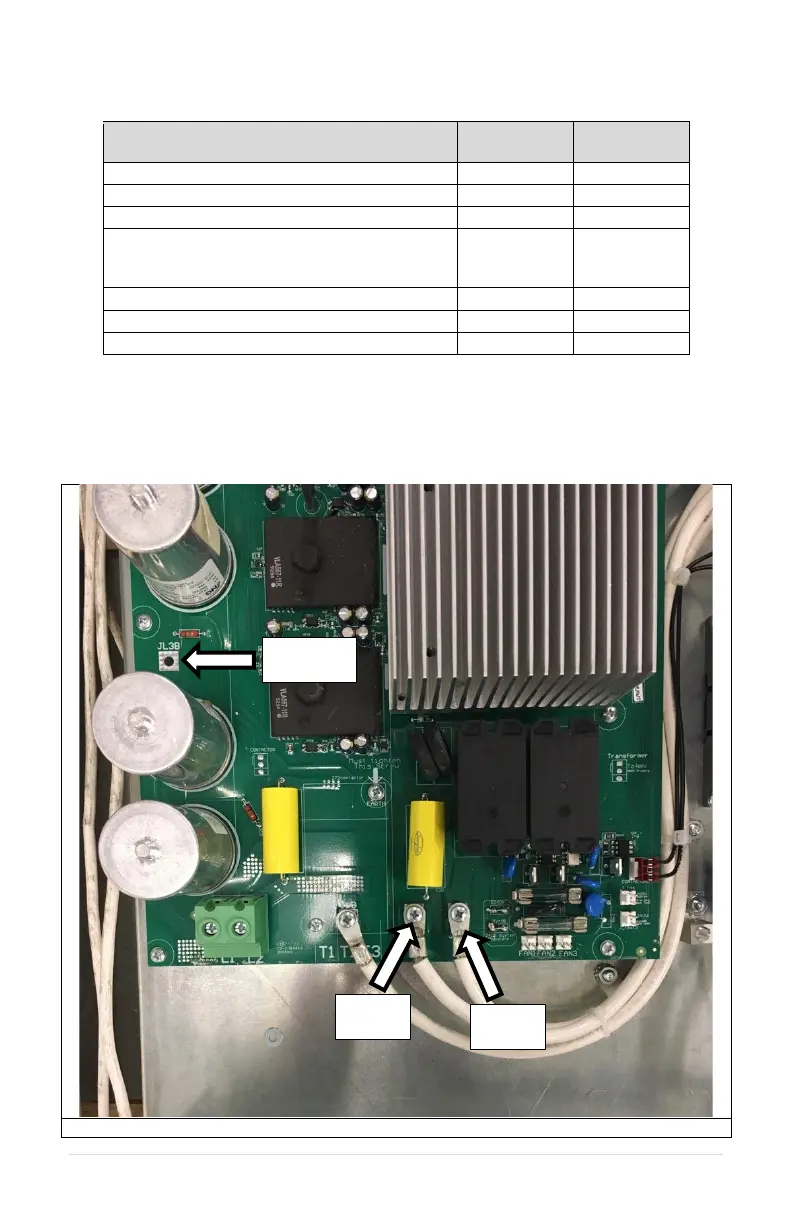

Figure 31 – Measuring PTE0XX Filter Capacitors
