Phase Technology Phase Perfect PT007 - Page 45

39 | Page
V2.1
*Phase converters 50 HP and larger should not be used to cross-the-line start motor loads.
1.0
10.0
100.0
1000.0
10000.0
0 50 100 150 200 250
Time (sec)
Current (A)

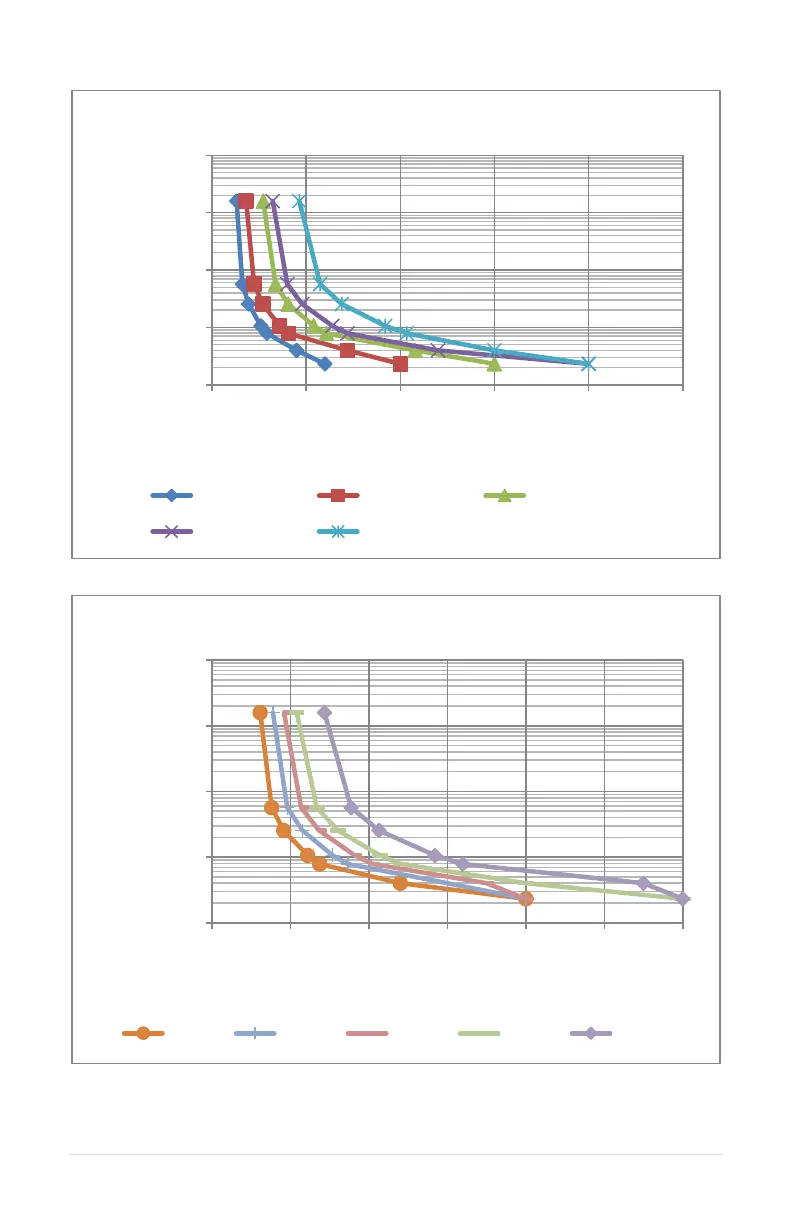

Overcurrent/Motor Starting Sourcing Limit
PT407/PTE407 PT410/PTE410 PT415/PTE415
PT420/PTE420 PT430
1.0
10.0
100.0
1000.0
10000.0
0 100 200 300 400 500 600
Time (sec)
Current (A)
Overcurrent/Motor Starting Sourcing Limit
PT440 PT450 PT460 PT475 PT4100
