PhaseOne PAS 280 - Page 25

PAS 280 Operation Guide
4. System Installation and Disassembly
Page 25 of
46

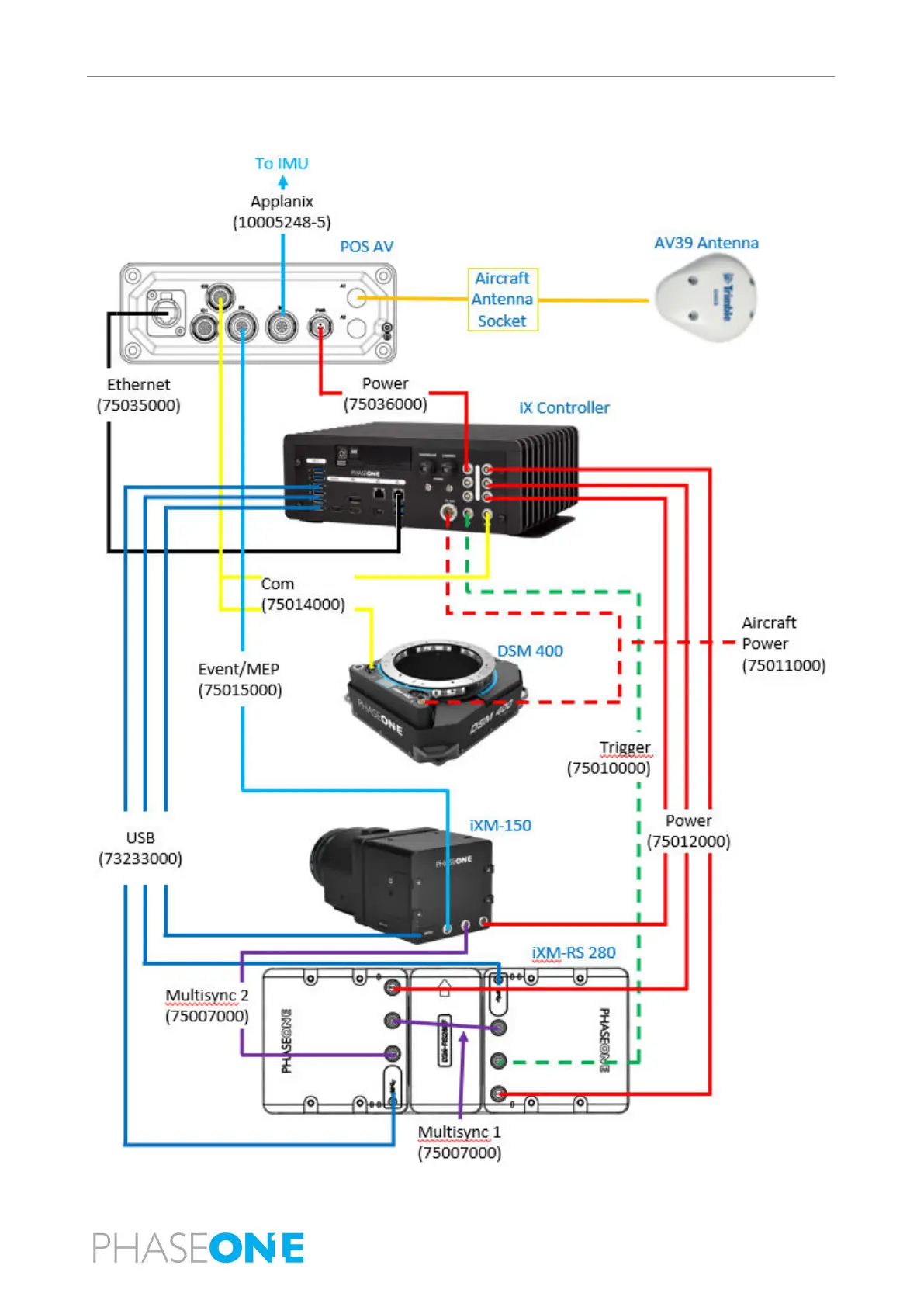

Figure 15. System Power and Communication Schematic Connection Diagram for PAS 280 System with
a DSM 400 Stabilizer and iXM-RS 150F Achromatic Camera
