PAS 280 Operation Guide
4. System Installation and Disassembly
Page 27 of
46

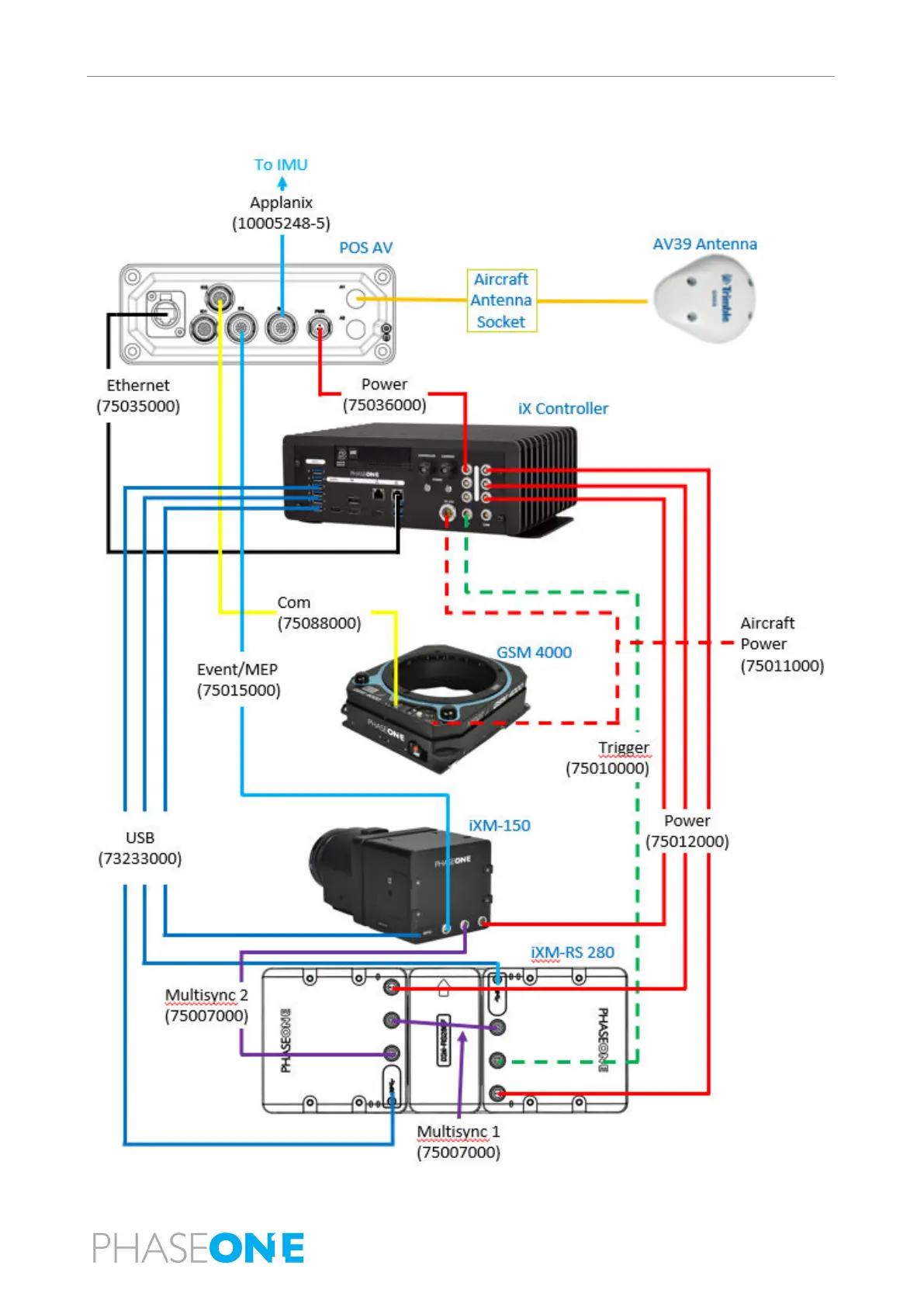

Figure 17. System Power and Communication Schematic Connection Diagram for PAS 280 System with
a GSM 4000 Stabilizer and iXM-RS 150F Achromatic Camera
