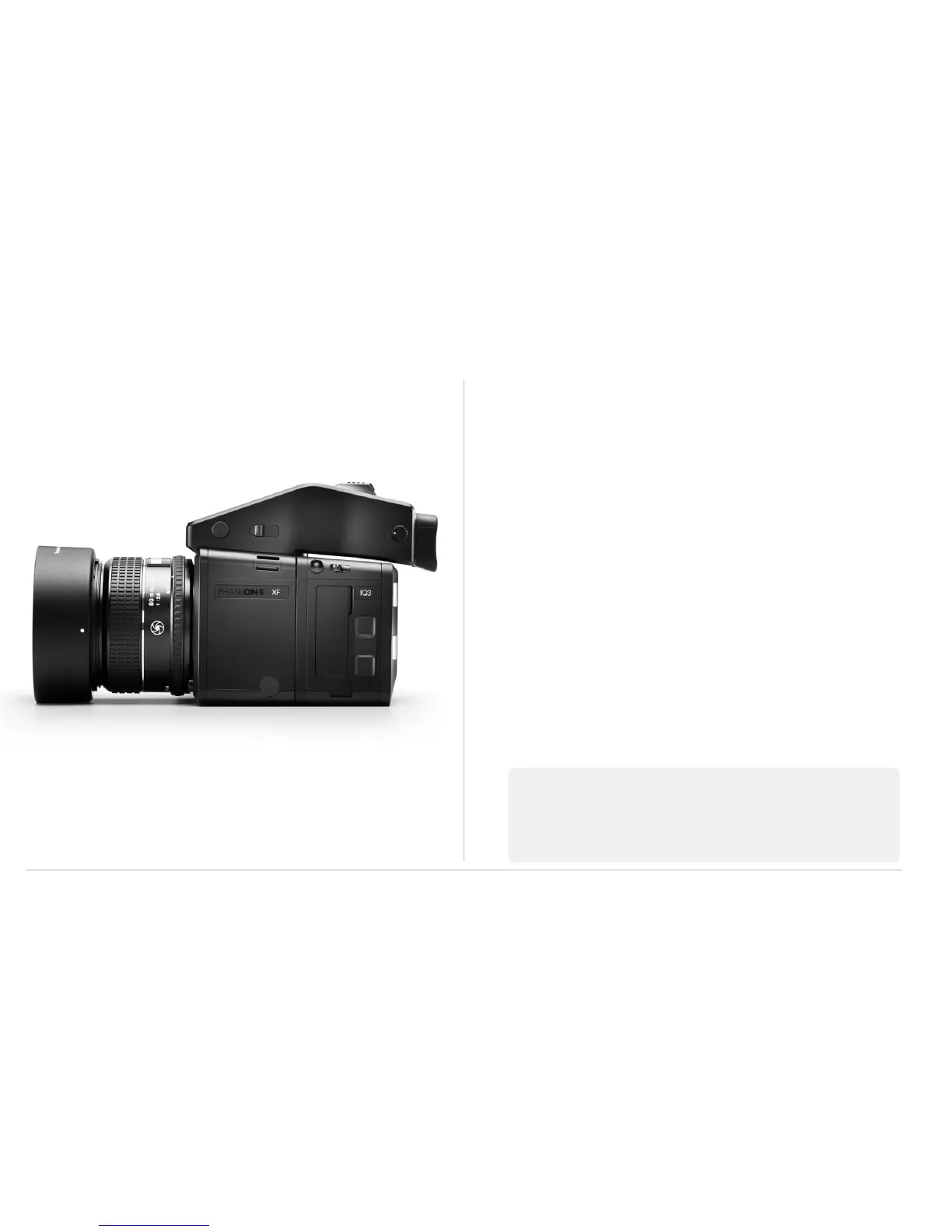

XF Camera System | Assembling the Camera System
6
Remove the IQ back from the XF camera body
1. Slide the back release lever forward toward the front of
the camera while pushing in the back release button.
2. Tilt the IQ back slightly backwards from the top and gently
lift the IQ back o the lower interface hook of the XF camera
Attach the IQ back to the XF camera body
1. Gently place the lower interface of the IQ back onto the
bottom hook channel of the XF.
2. Tilt the IQ back toward the camera until the top latch
clicks into position
3. Use the slider and the release button to hook it firmly
in position
Removing the lens
Depress the lens release button on the front left-hand side of
the camera, and keep depressed.
Rotate the lens counter-clockwise until it stops, and lift it out.
Attaching a lens
Align the red or blue index point on the lens with the red or
blue index points located on bayonet mount of the XF camera.
Two dierent colored index points are available to allow easier
attachment of the lens to the camera. Either when looking
downwards from above the camera (blue) or in front of the
camera looking from the side (red)
NOTE:
After removing the IQ back or the lens from the camera body, remem-
ber to protect the optical parts by reattaching the caps and covers.
Also remember to attach the front and back port cover on the XF to
protect the the camera from dust entering the mirror box
