6CP50/10-3
3-1
SECTION 3: CONTROLS AND INDICATORS
Figure 3-1









 
PHENIX

TECHNOLOGIES










































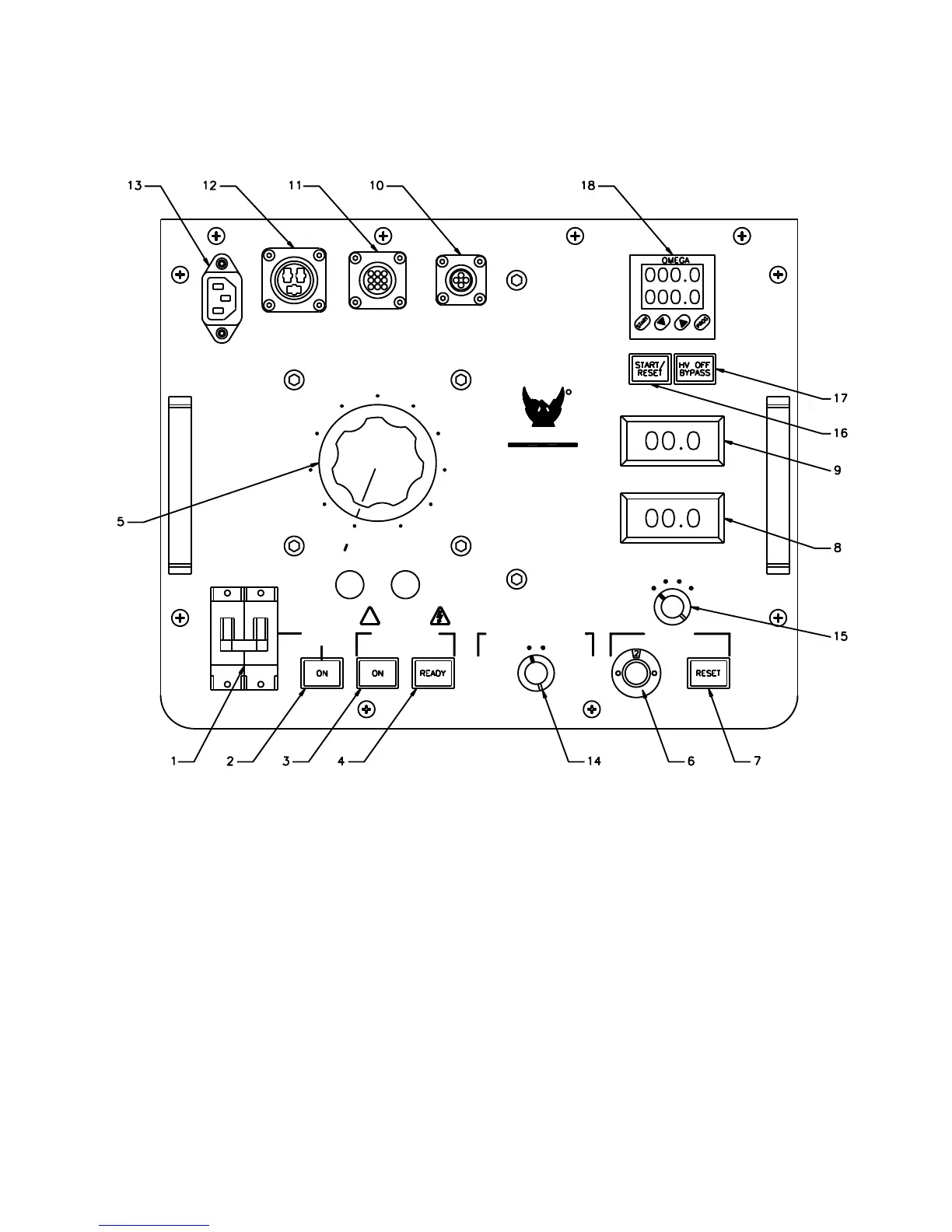

Control Panel: The following descriptions are keyed to Figure 3-1
1. Main Power Circuit Breaker. Turns main power of unit on and off and provides input overload protection.
2. Main Power Lamp. Illuminates to indicate input power is supplied to unit.
3. High Voltage On. Momentary switch activates power to high voltage circuits when pre-required
conditions are met. Ready lamp (4) must be illuminated before High Voltage On switch will operate.
See requirements for Ready lamp under step 4. High Voltage On lamp illuminates to indicate high
voltage circuits are energized.
