5.13 Tilt and swivel base
x Tilt angle: -5 q + 2/- 0 q (forward)
+20 q + 0/- 3 q (backward)
x Tilt for left and right:

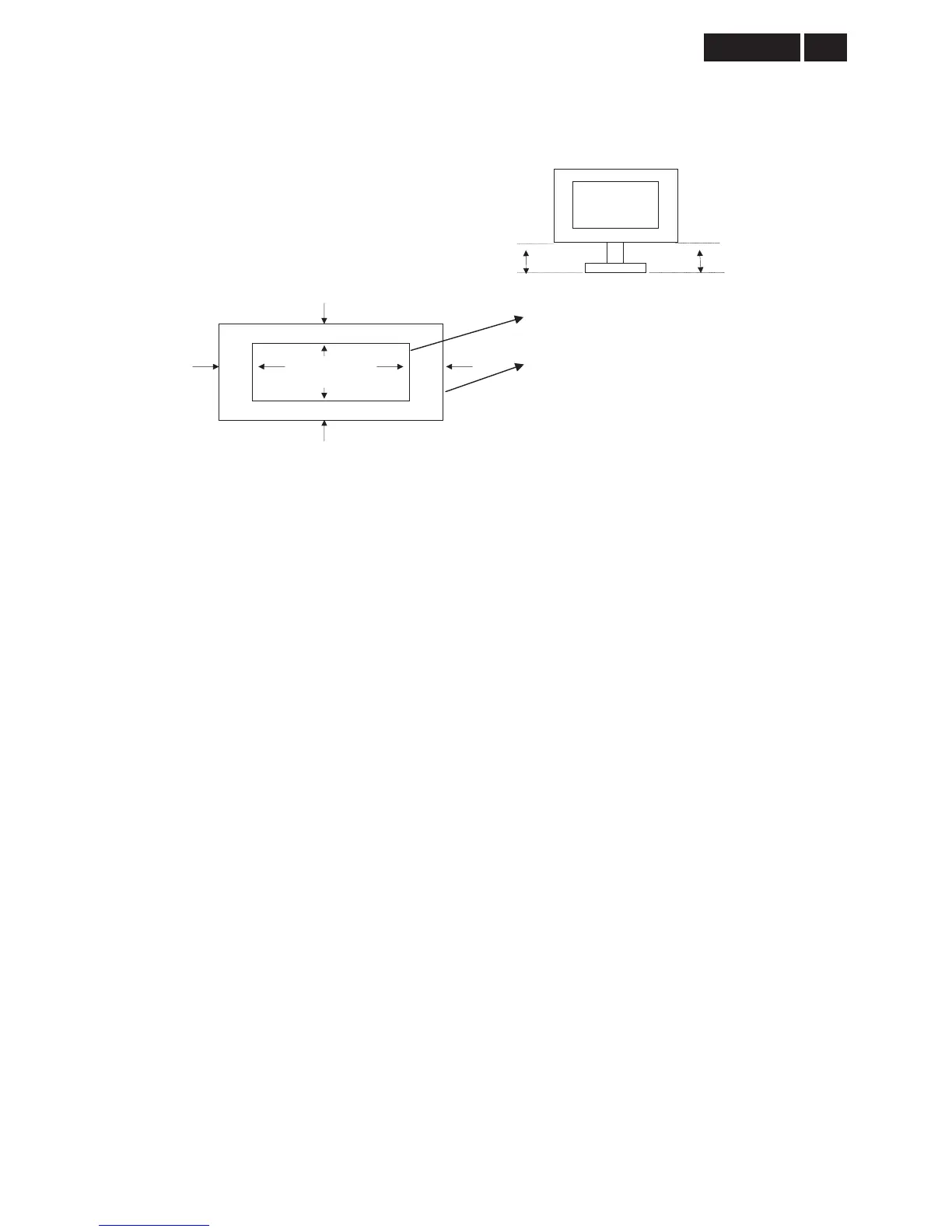

ΊA-BΊ 4.0mm
x Black side and cut sideΚ
1. Visual area
H:L-R0.8~1.0 mm
V:U-D0.8~1.0 mm
2. Black side on the left and right is
symmetrical, not cut side.
x Gap between bezel and rear cover  0.4mm
x Step between bezel and rear cover
Left, right and top:  0.3mm Bottom and corner:  0.5mm
x "Wobble", "Twist", etc (front to back or side to side)
Whole monitor set shall retain stability within a short time after the applied external force disappears.
20NT, 6secs (Max.) back to stable.
5.14 Kensington Lock
x Must meet Kensington_slot.spec “TYE-M0004”.
x MMD request metal plate in Kensington hole.
5.15 Label
x Carton label should follow Philips requirement.
x Regulatory label follow Philips requirement.
x China RoHS label
x Detail document refer to Philips Engineering Reference Book.
5.16 Product dimension / Weight (Refer to Philips approved SHT 191/SHT560)
x Unit dimension : 442 (w)*340(H)*191(D)
x Packed unit dimension : 520(w)*352(D)*133(H)
x Net weight : 3.61
x Gross weight : 4.34
5.17 Transportation
Transportation standards refer to UAN-D1534/00/01.
5.17.1 Transportation packages
Packaging and wrapping shall be sufficient to protect the product against damage or loss during
shipment from the supplier to the destination specified in the purchase order. All packing materials
are subject to test and evaluation per TPV standard. The cushion material shall be constructed
using EPS material.
L
U
D
R
A
B
