Philips 191E2SB/00 - Adapter Board; Scaler Board

!
28
Meridian 2

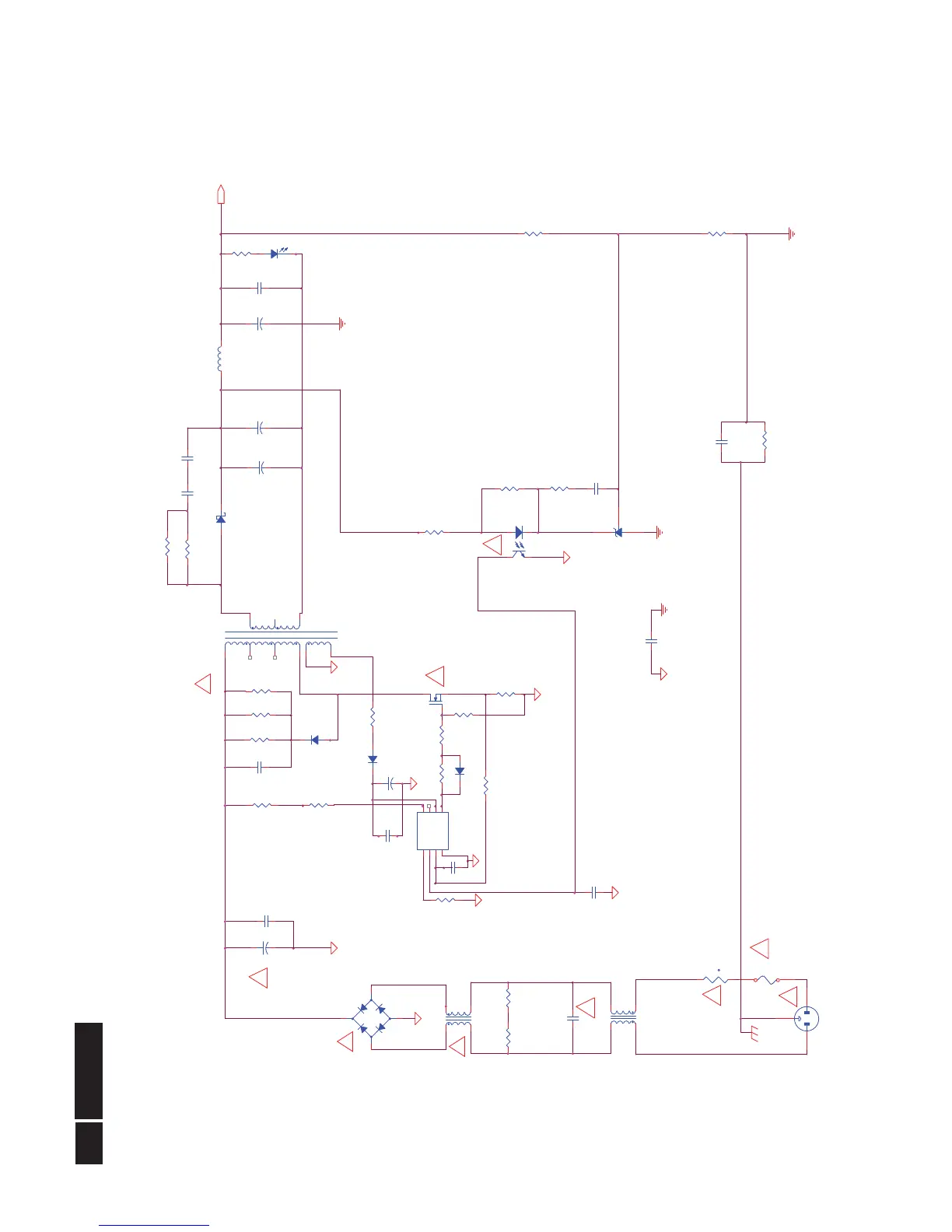

6.2 Adapter Board (715G3980P0D0000030) Remark: Parts position can be searched by using FIND function in PDF.
1 2
D906
Diode MBR20100CT
R907
560K 1/4W
C930 10N 50V
R942
100OHM +-5% 1/8W
C925
1500PF2KV
R919 45.3KOHM +-1% 1/10W
D902 1N4007
R937
560K 1/4W
LED1 LED
R910 100K 1/8W
R906
10K 1/4W
D903 1N4007
+
C929
47uF/50V
R938
560K 1/4W
C931
100pF50V
!
!
R934
10K 1/4W
+
C927 100uF 25V
!
R922 470OHM +-5% 1/8W
+
C919
680UF 25V
!
!
!
+12V/3A
F901 FUSE
Q901
SMK0965F
R947
4.7 OHM
R9040.47OHM2W
12
3
CN901 SOCKET
2
1
3
4
-
+
BD901
KBP306G-05
R901
1 MOHM +-5% 1/4W
R902
1 MOHM +-5% 1/4W
C903 0.47UF
R940
220 OHM 1/10W
C908
2N2 500V
1 4
2 3
L902
14mH
L903 0.8uH
R918
20K 1/10W 5%
C920 1U 25V
1 4
2 3
L901 0.45mH
!
+
C918
680UF 25V
R941
1R5 1/8W 5%
R916 11.5KOHM +-1% 1/8W
+
C907
82uF 450V
R911 2KOHM 1/10W R912 1K 1/10W
R905 10K OHM +-5% 1/8W
C910 100N 50V
12
43
IC902
PC123X2YFZOF
IC903 KIA431A-AT/P
C900 0.001uF/250V
!
12
t
NR901
NTCR 5 OHM 3A
!
C915 0.047uF 50V
C909 10NF1KV
R914
100 OHM 1/4W
R903 1M OHM +-5% 1/8W
C901 1U 25V
C911
2N2 500V
!
NC
FL2
6
5 9
FL1
8 4
T901
700uH
LATCH
1
COMP
2
CS
3
GND
4
OUT
5
VCC
6
NC
7
HV
8
IC901
LD7750GS
D908 LL4148
R908
100 OHM 1/4W
