Philips 191E2SB/00 - Page 25

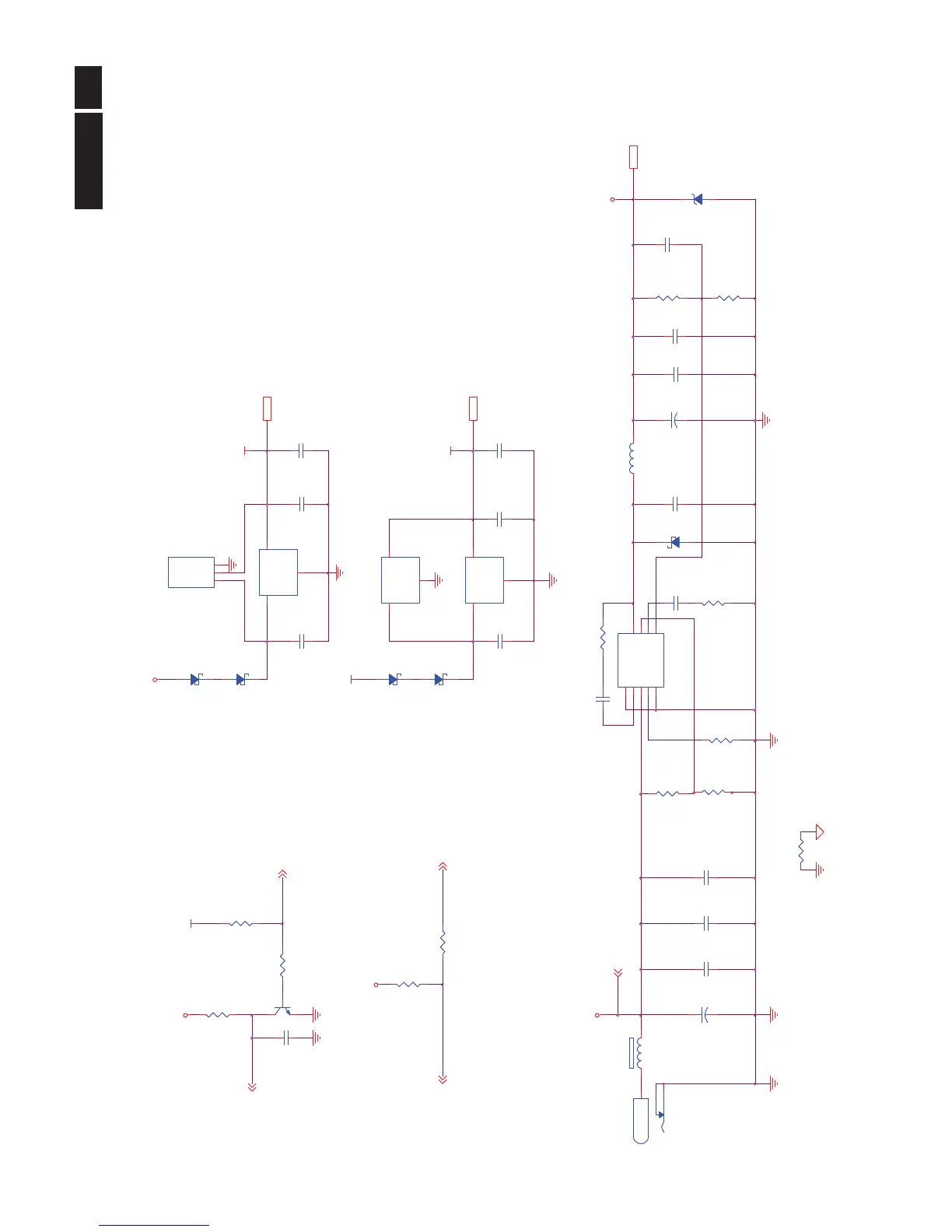

25 Meridian 2
Remark: Parts position can be searched by using FIND function in PDF.
C707 22UF 16V
SOT 252 C702 100N 16V
VCC3.3
D702
SM340A
12
adj_BACKLIGHT 5
C704 22UF 16V
C717 100nF 25V
C716 10uF 25V
on_BACKLIGHT 5
+12V
R709 33K 1/16W 5%
BKLT-EN6
C714 100N 16V
CMVCC1 2,3,5
CN701 JACK
3 2 1
Q701 LMBT3904LT1G
VCC1.8
U704
NC/AZ1117D-1.8-E1
23
1
OUTIN
GND
+
C709 470uF 10V
SOT 252
R703 22K1/16W
BKLT-VBRI
D703 SM340A
12
CMVCC1
U702
3 2
1
VI VO
GND
+
C715 180uF 16V
L701 22uH
VCC1.8 5
D701 SM340A
12
+12V 6
R704 10K 1/16W 5%
U703
3 2
1
VI VO
GND
ZD701 NC/RLZ6.2B
1 2
R701 10K 1/16W 5%
R706 100K1/16W
R708 100K1/16W
CMVCC1
R705 100OHM1/16W
VCC3.3 2,5
BKLT-EN
C706 100N 16V
C708 100nF 25V
C710 2.7NF 50V
BKLT-VBRI6
R710 300K
CMVCC1
VCC3.3
C713 10uF 25V
U701
G1117-33T43UF
1
2
3
ADJ(GND)
VOUT(TAB)
VIN
C703 100N 16V
CMVCC1
SOT 223
VCC3.3
C705 100N 16V
D705 SM340A
1 2
R711 1.3K 1%
SOT 223
C718 1nF 50V
FB701 BEAD
1 2
FB702
0R05 1/10W
R702 10K 1/16W 5%
U705 MP1584EN
1 2 3 45
6 7 8 9
SW
EN
COMP
FBGND
FREQ VIN BST Thermal Pad
C711
150pF 50V
R707 6K8 1%
C701
100N 16V
D704 SM340A
12
FB801
0R05 1/4W
C712 1nF 50V
