Mechanical Instructions
EN 13LC8.1U LA 4.

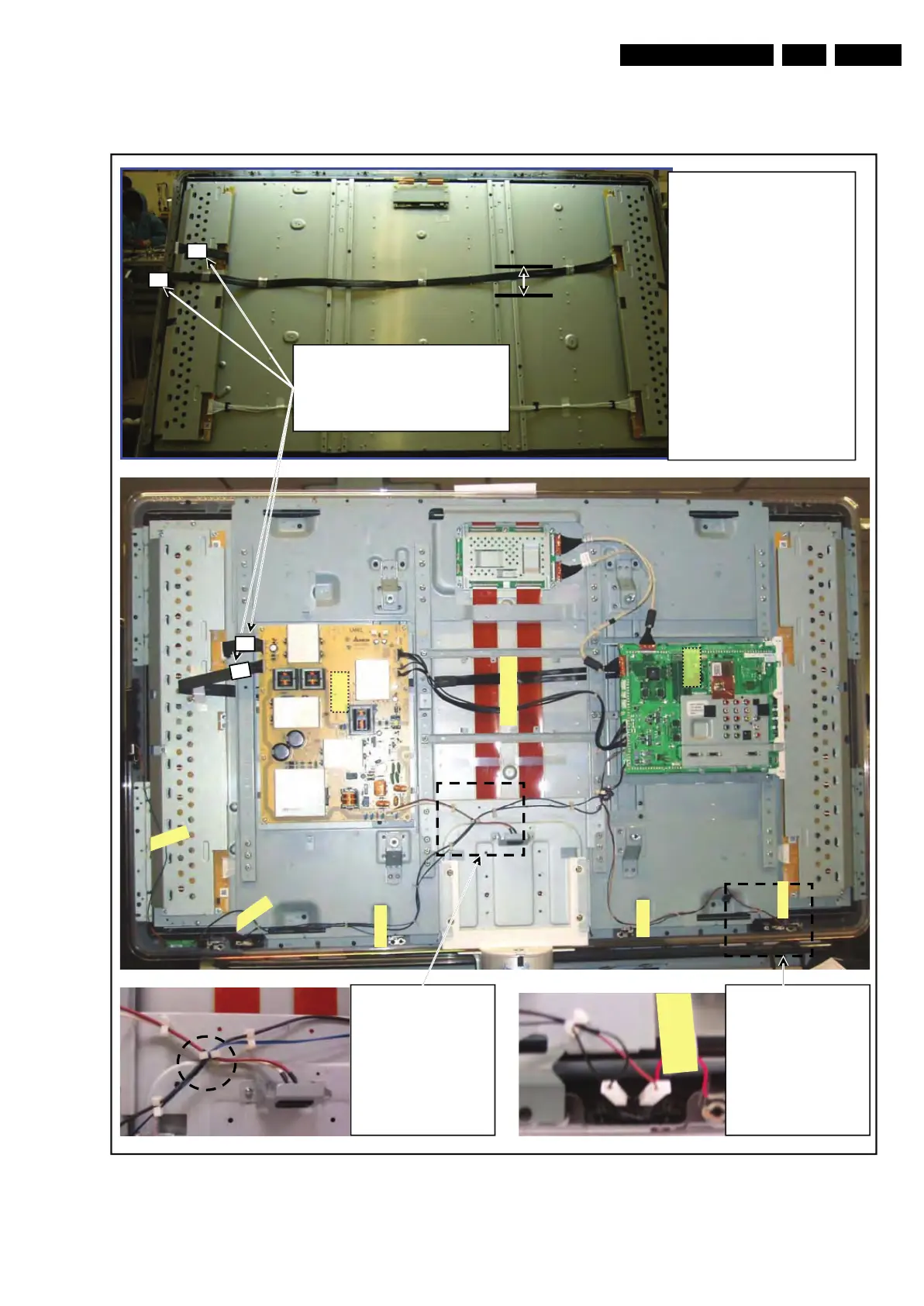

Figure 4-7 Cable dressing (52" models, ME8 styling)
Note orientation
of wire saddle –
the IR and
Speaker Cables
must not be
parallel with AC
Mains cable
Tape speaker
wires to prevent
interference with
speaker terminal
NOTE: For inverter cables,
the connector with ferrite
is to be inserted at the
PSU side
Tape inverter cable so
it stays in-between the
LCD Panel lamp
holders as shown to
avoid EMC Foam on
SSB Bars.
I_17741_014.eps
240408
